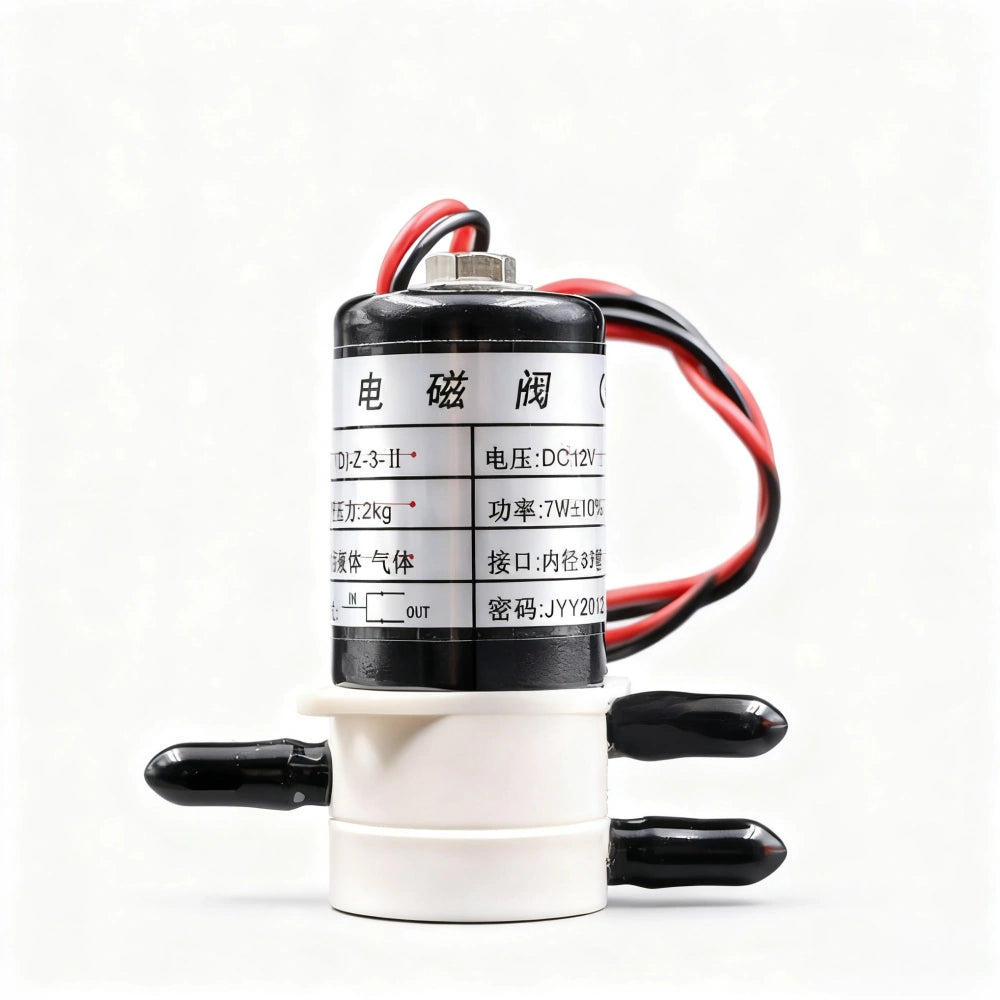

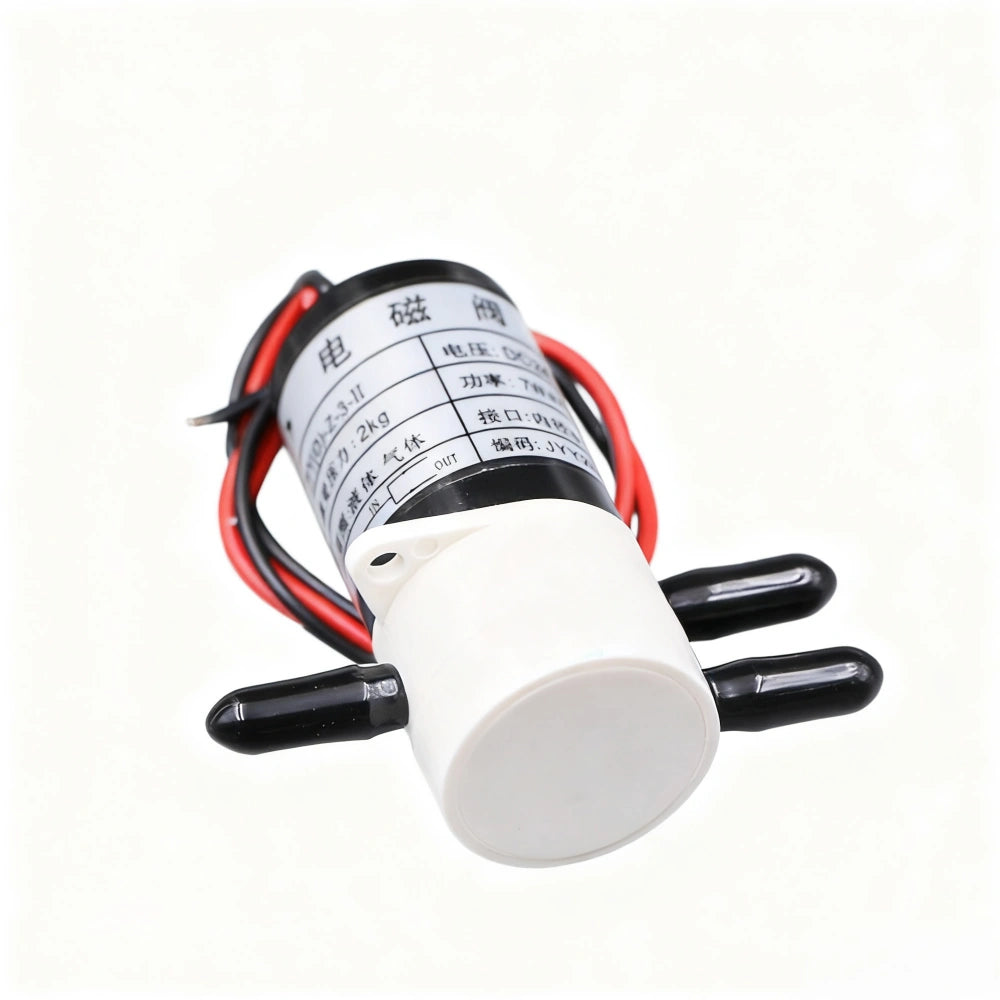

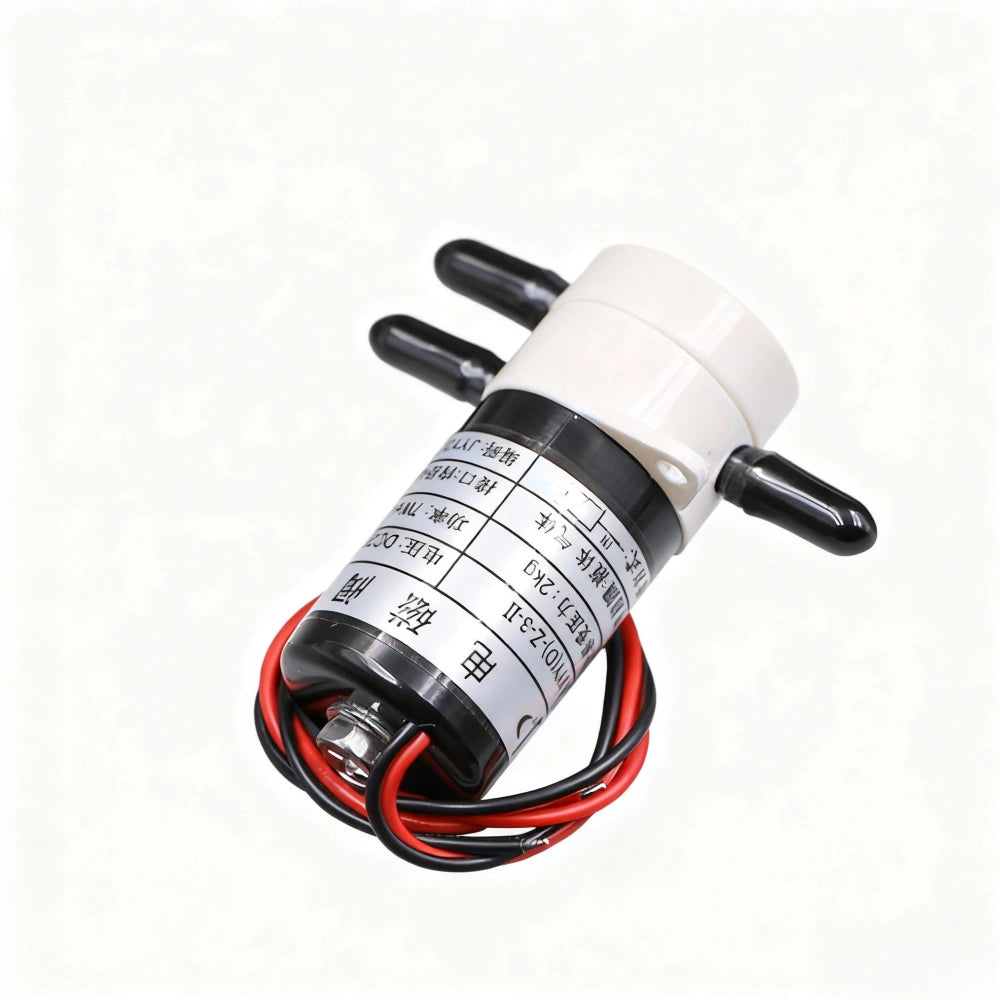

Solenoid Valve - JYY(D)-Z-3-II
SKU:
Solenoid Valve - 007
- $28.60
- $28.60
- Unit price
- per
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xProduct Overview
Solenoid Valve - JYY(D)-Z-3-II is a replacement solenoid valve for large format printer ink, air, cleaning, wiper or pneumatic control systems. Select this part by exact valve model, voltage, wattage, port type, tube connector and installed function.
Model and Application
Matched model reference: JYY(D)-Z-3-II. Application/media reference: air / gas / liquid / ink.
Technical Specifications
| Source SKU / Rows | Solenoid Valve - 007 / row 8 |
| Valve Model | JYY(D)-Z-3-II |
| Electrical Rating | Voltage: 24V / DC 24V / DC 12V; Power: 7W |
| Media / Use | air / gas / liquid / ink |
| Source Attributes | 24V, 7W, 气体, 液体 |
Available Options
| SKU | Variant Option |
|---|---|
| Solenoid Valve - 007 | JYY(D)-Z-3-II Three-Way (DC 24V) |
| Solenoid Valve - 007 - 1 | JYY(D)-Z-3-II Three-Way (DC 12V) |
Before Ordering
Confirm the old valve label, DC voltage, wattage, 2-way/3-way function, tube diameter, port direction and connector type. Valves with similar body shapes may not be interchangeable.
Installation Notice
Install with the printer powered off and depressurized. After replacement, check air/ink flow, leakage, valve direction, cable polarity and maintenance station operation before production.
FAQ
Can I use a 12V valve instead of a 24V valve?
No. Match the voltage shown on the old valve or service documentation.
What should I send if unsure?
Send photos of the old valve label, connector, tube ports, installed location and printer model.
