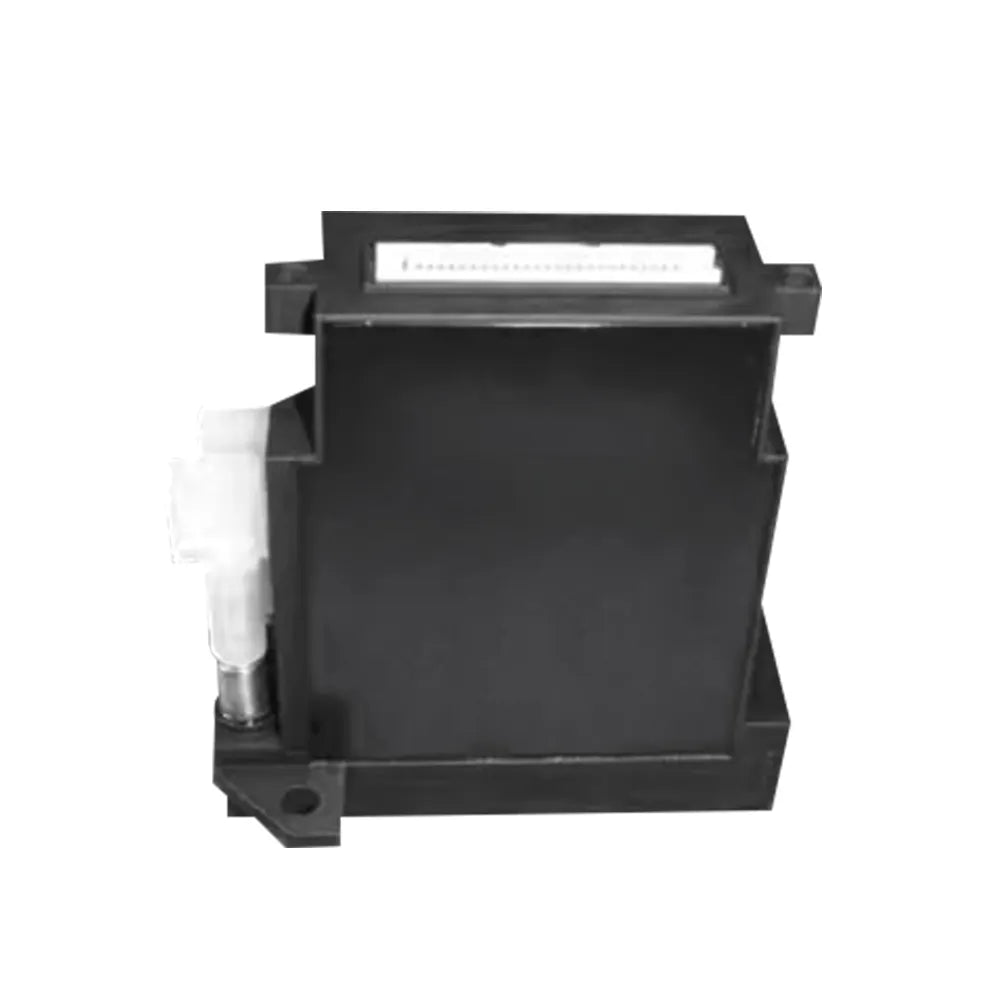

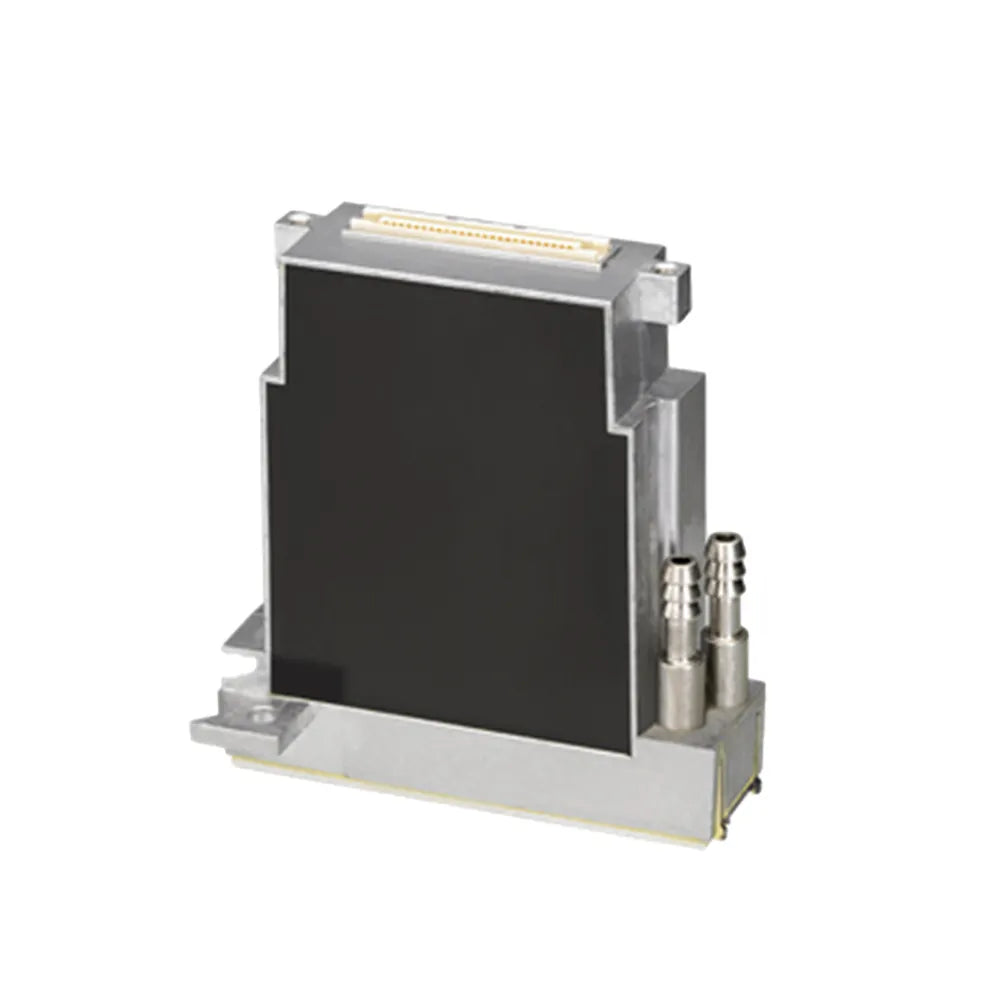

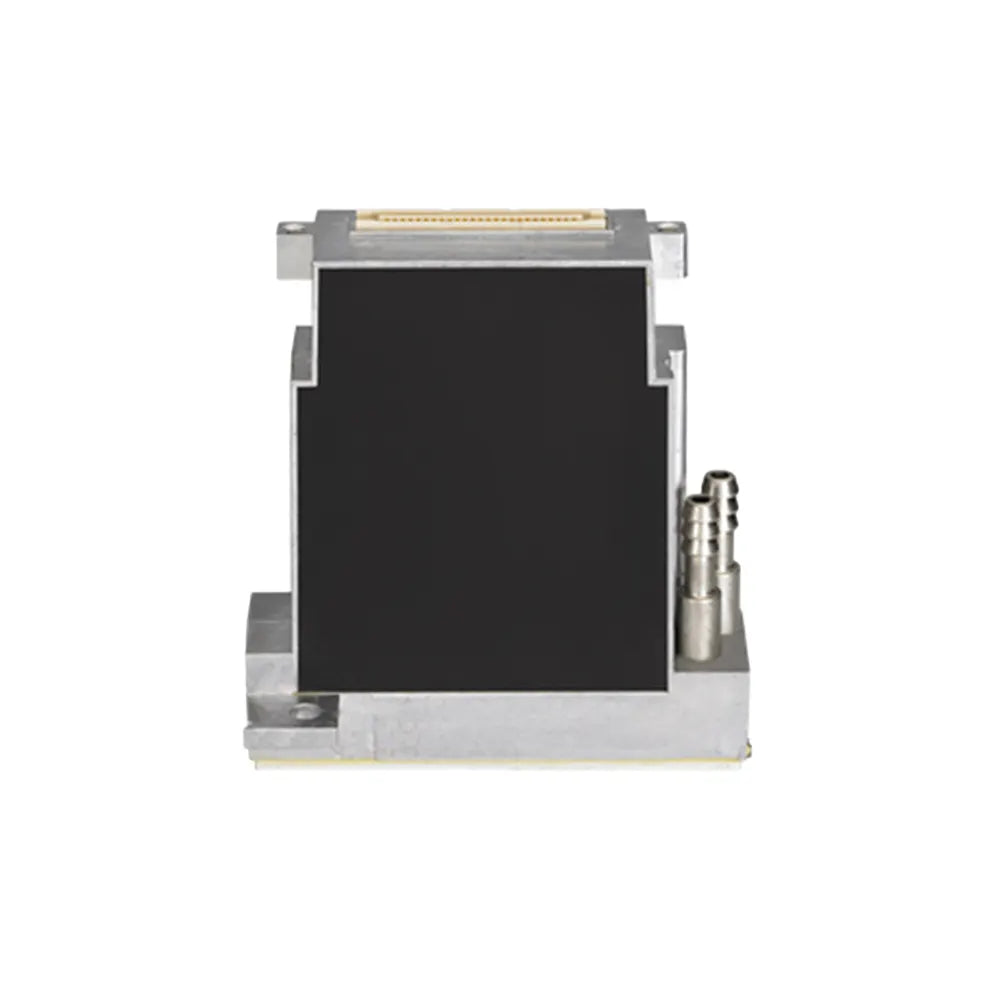

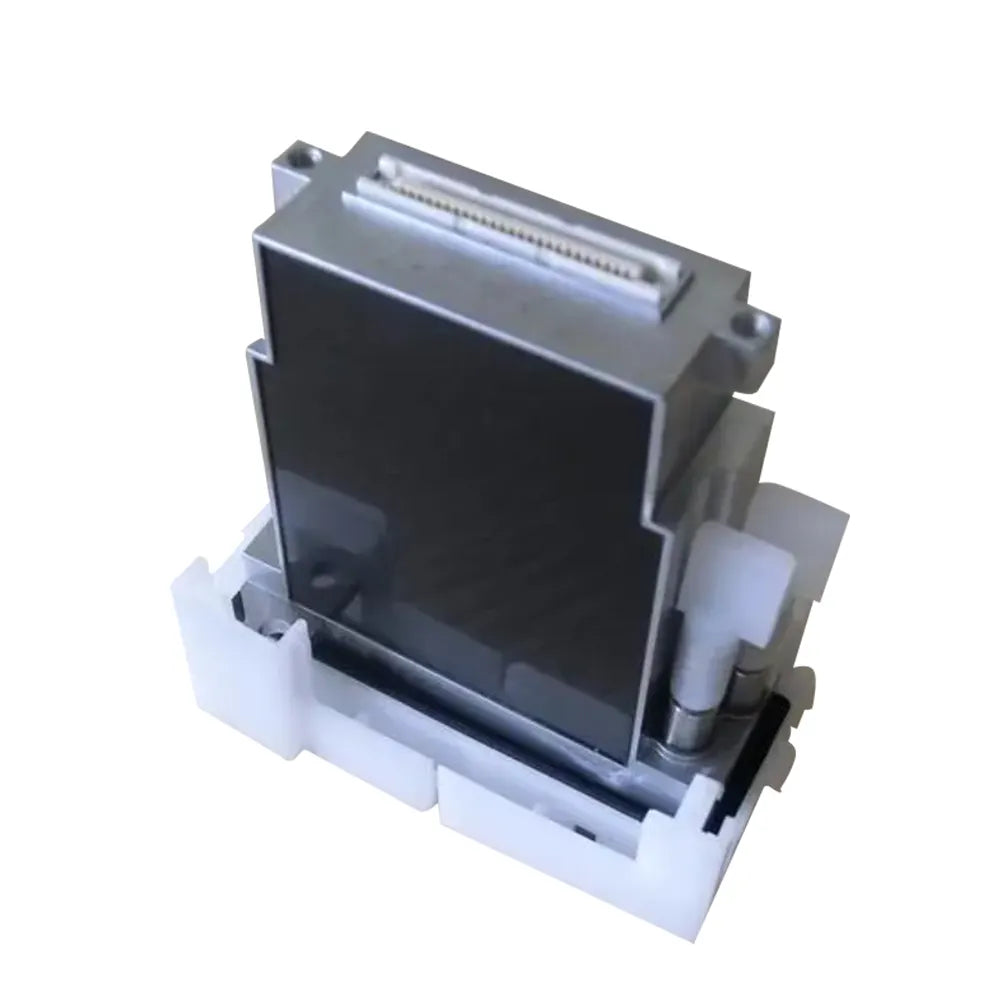

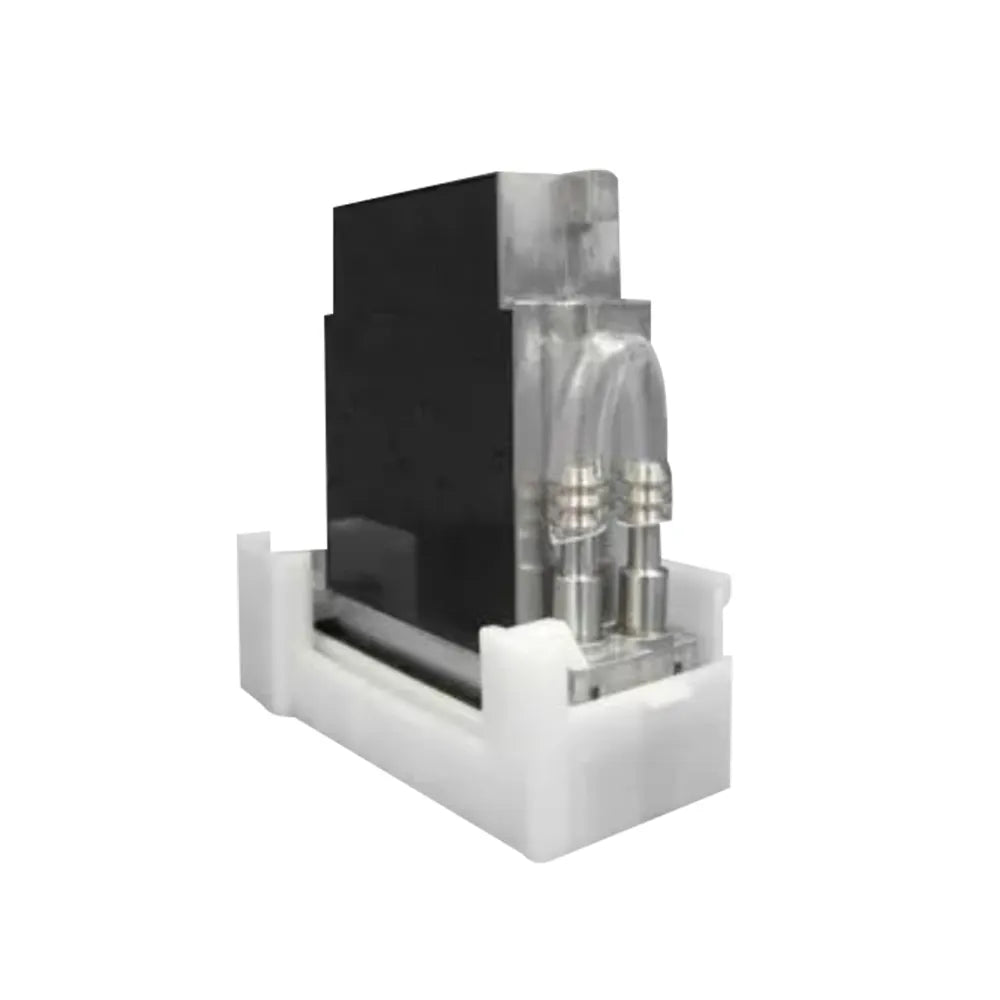

Konica Minolta KM512 MNX Printhead - 14pl for Solvent Ink
Vendor:
Konica Minolta
- $1,153.00
- $1,153.00
- Unit price
- per
Subtotal:
$1,153.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview
Konica Minolta KM512 MNX is the 14pl medium-drop solvent model in the KM512 series.
Model Identification
The previous product handle included LNX, but the product title and model are KM512 MNX-14pl. This page is now standardized as KM512MNX.
Technical Specifications
| Model | KM512MNX |
| Technology | Piezo Drop on Demand, shared wall 3-cycle |
| Resolution | 180 dpi x 2 lines = 360 dpi |
| Number of nozzles | 256 nozzles x 2 lines = 512 nozzles |
| Nozzle pitch | 70.5 um (141 um x 2 lines) |
| Printing width | 36.1 mm |
| Dimensions | W67 mm x D40 mm x H63 mm |
| Weight | About 95 g |
| Drop size | 14 pl |
| Maximum frequency | 12.8 kHz |
| Grey scale | 4 levels |
| Internal heater | No |
| Solvent ink | Yes |
| UV ink | Not listed in official table |
| Source note | Konica Minolta official KM512 Series specification page |
Ink System Compatibility
Konica Minolta's KM512 specification lists KM512MNX for solvent ink. UV use is not listed in the official table and should not be assumed.
Applications
Used in compatible solvent wide-format printers that require 14pl KM512MNX heads for finer output than LNX large-drop models.
Compatibility Confirmation Before Ordering
Confirm the old head label is KM512MNX and not KM512LNX before ordering.
Installation & Handling Notice
Printheads are precision electronic components. Use trained technicians, antistatic handling, correct cables, matched waveform, clean ink path, stable ink temperature and proper maintenance procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can a similar-looking printhead replace this model? No. Confirm the exact model code, part number, ink chemistry, cable, drive board and firmware before ordering.
What information should I send before purchase? Send the old printhead label, printer model, current ink type, cable photos and nozzle-test status.
