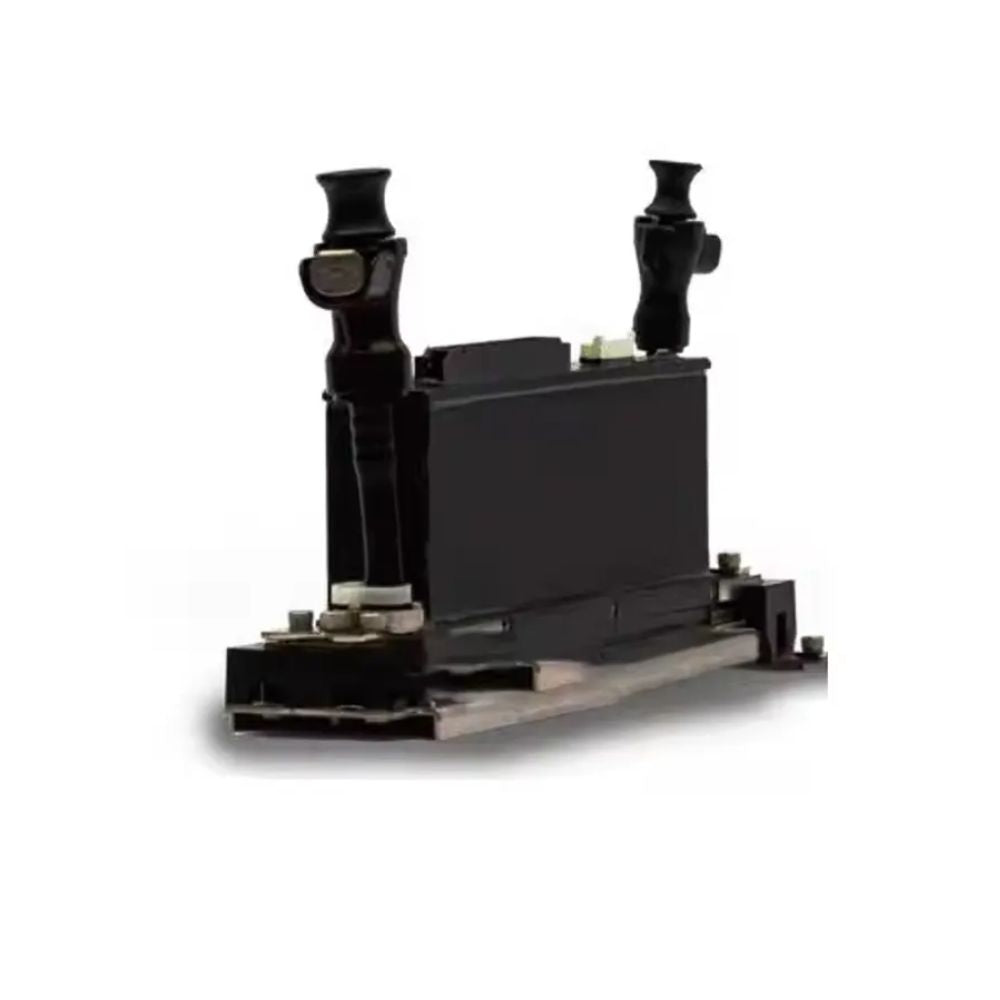

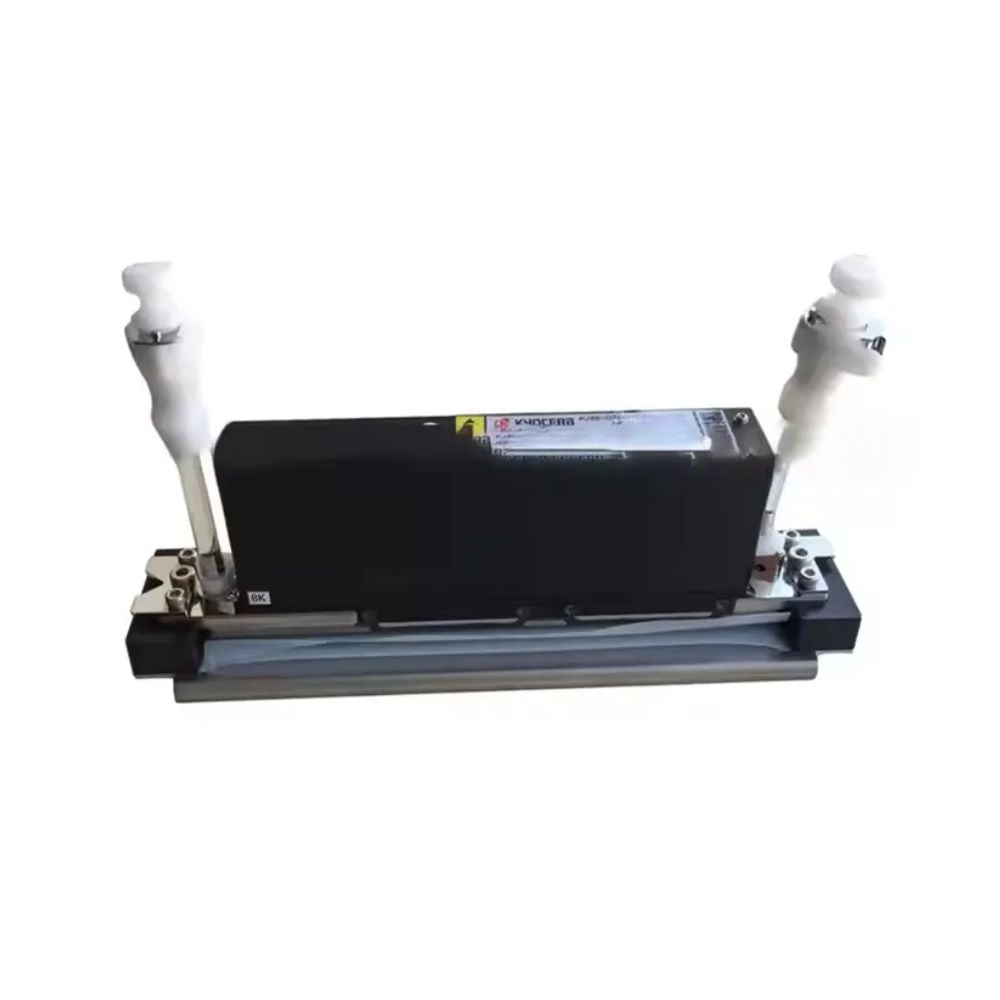

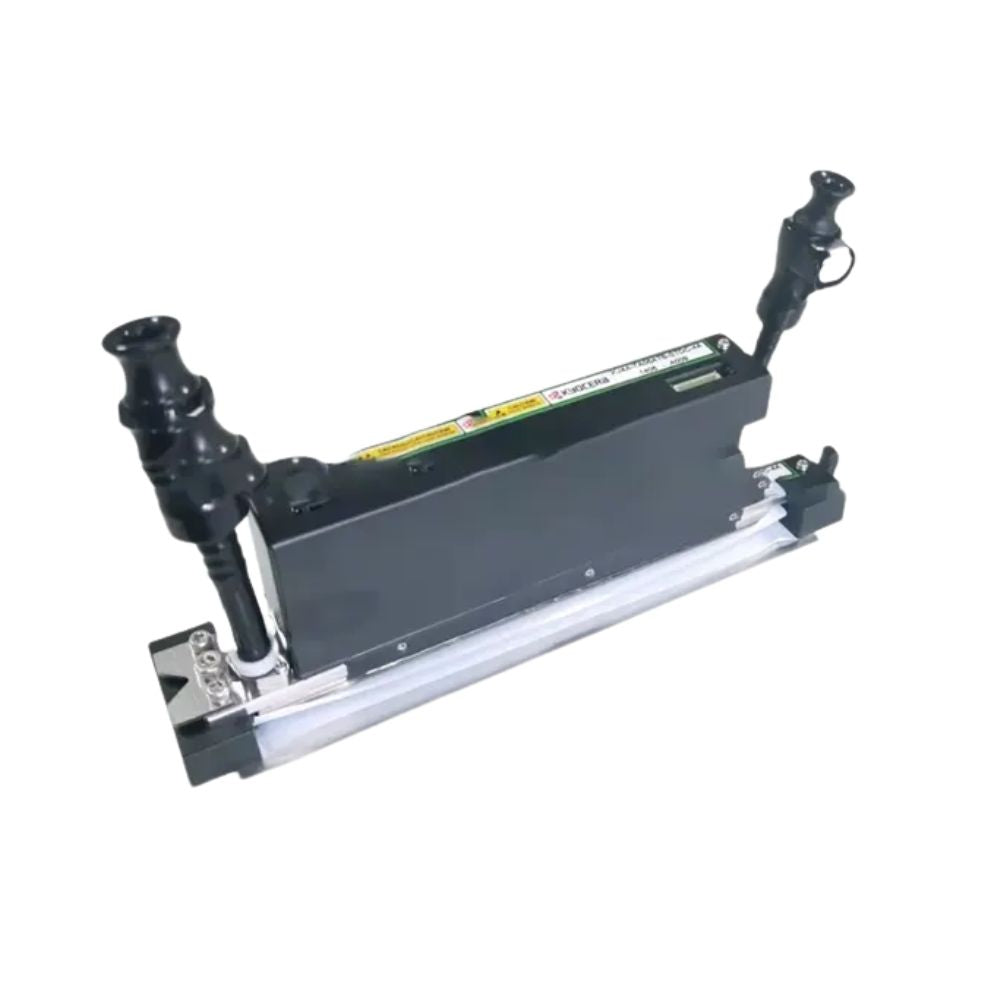

Kyocera KJ4A-0300 Printhead - 300 x 600 dpi for UV Ink
Vendor:
Kyocera
- $7,855.00
- $7,855.00
- Unit price
- per
Subtotal:
$7,855.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview
Kyocera KJ4A-0300 is an industrial UV inkjet printhead in the KJ4A series for compatible high-viscosity UV printing systems.
Model Identification
KJ4A-0300 is the 300 x 600 dpi UV model. It should not be confused with KJ4B-0300, which is the water-based model.
Technical Specifications
| Model | KJ4A-0300 |
| Ink type | UV |
| Maximum drive frequency | 30 kHz |
| Standard resolution | 300 x 600 dpi |
| Print speed | 76.2 m/min |
| Drop volume | 4-14 pl |
| Nozzle recirculation | No |
| Dimensions | 200 x 36 x 68.8 mm |
| Nozzle count | 2,656 |
| Effective print width | 112.35 mm |
| Recommended ink viscosity | 6.0-7.0 mPa.s |
| Source note | Kyocera China official inkjet printhead product lineup |
Ink System Compatibility
Kyocera's product line lists KJ4A-0300 for UV ink, with recommended ink viscosity of 6.0-7.0 mPa.s.
Applications
Used in compatible UV flatbed, UV roll-to-roll, label, packaging, industrial decoration and single-pass or multi-pass UV printer systems.
Compatibility Confirmation Before Ordering
Confirm the old head label is KJ4A-0300 and that the printer is configured for UV ink before ordering. Do not use this page to confirm KJ4B-0300 compatibility.
Installation & Handling Notice
Kyocera KJ4 printheads are precision industrial components. Use trained technicians, antistatic handling, correct waveform, clean ink path, matched ink viscosity, stable temperature control and proper flushing procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can KJ4A and KJ4B replace each other? No. Kyocera identifies KJ4A as the UV / higher-viscosity platform and KJ4B as the water-based platform. Confirm the exact model and ink system before ordering.
What should I confirm before purchase? Send the old printhead label, printer model, ink type, cable photos, waveform/board information and nozzle-test status.
