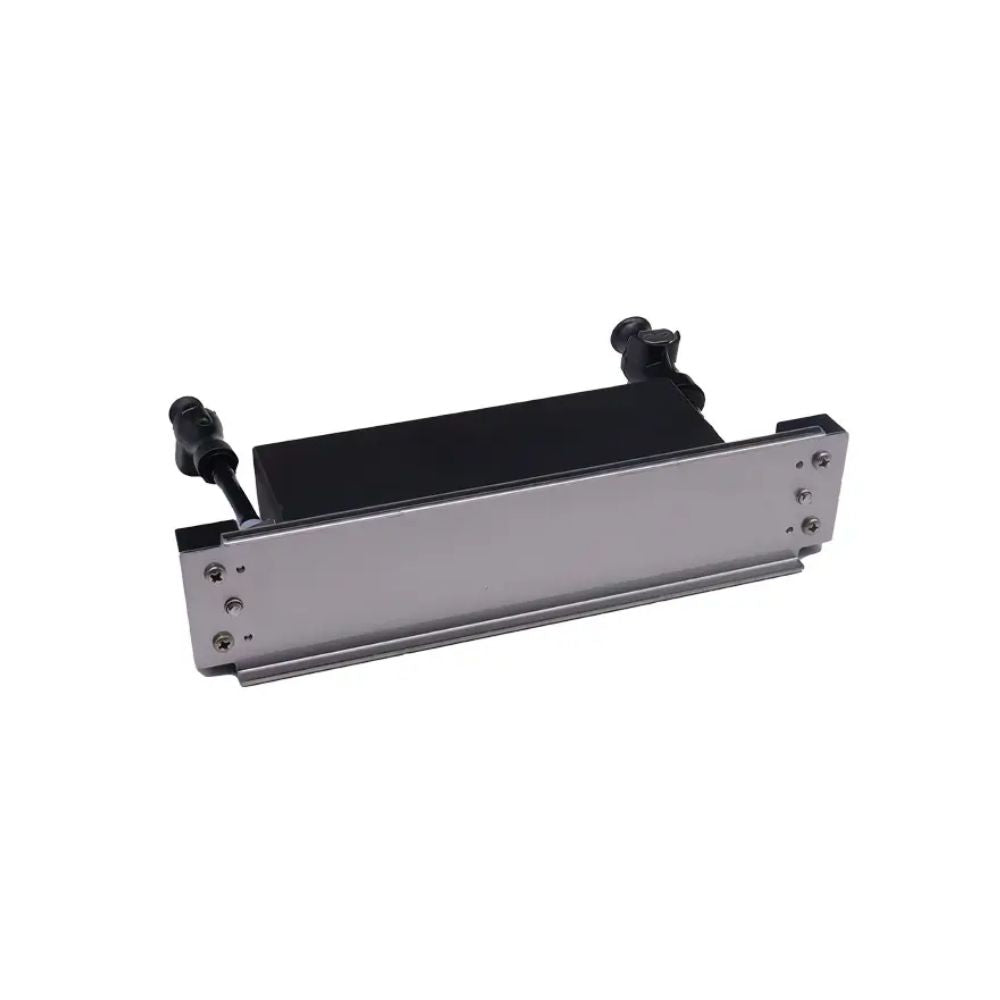

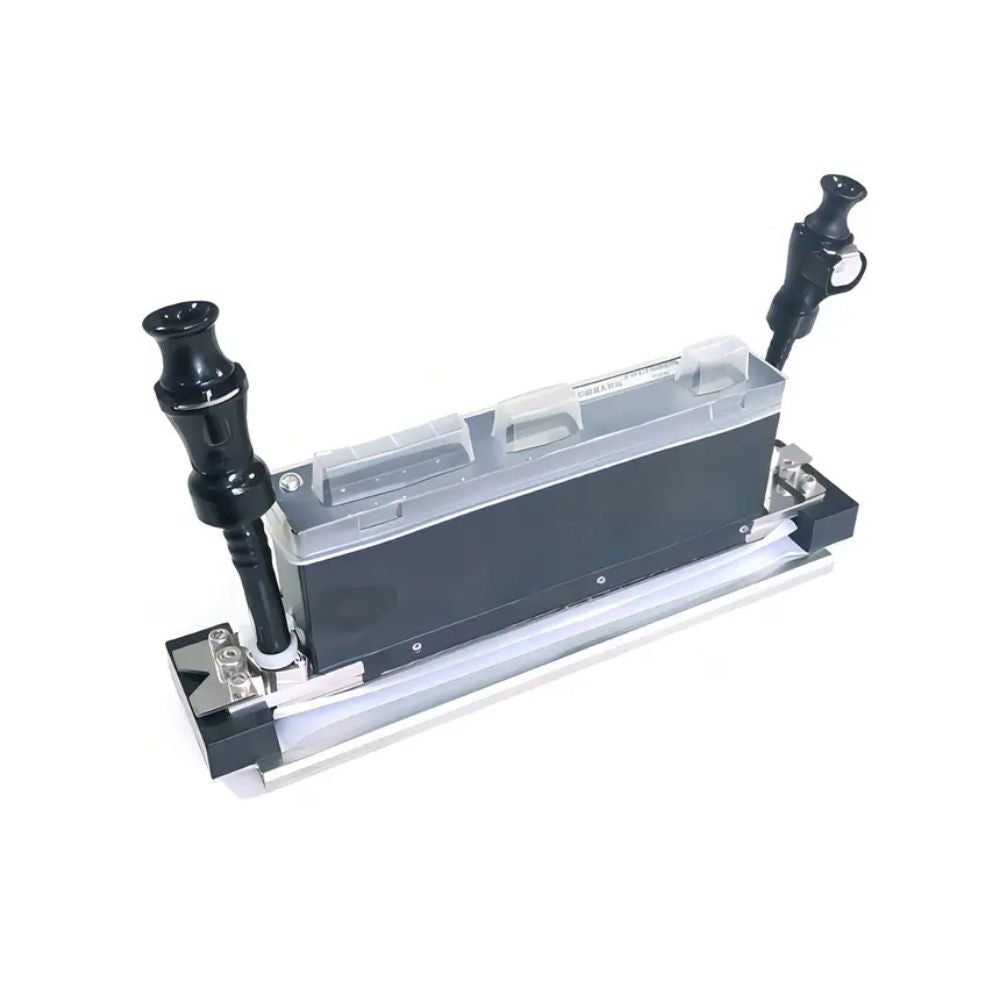

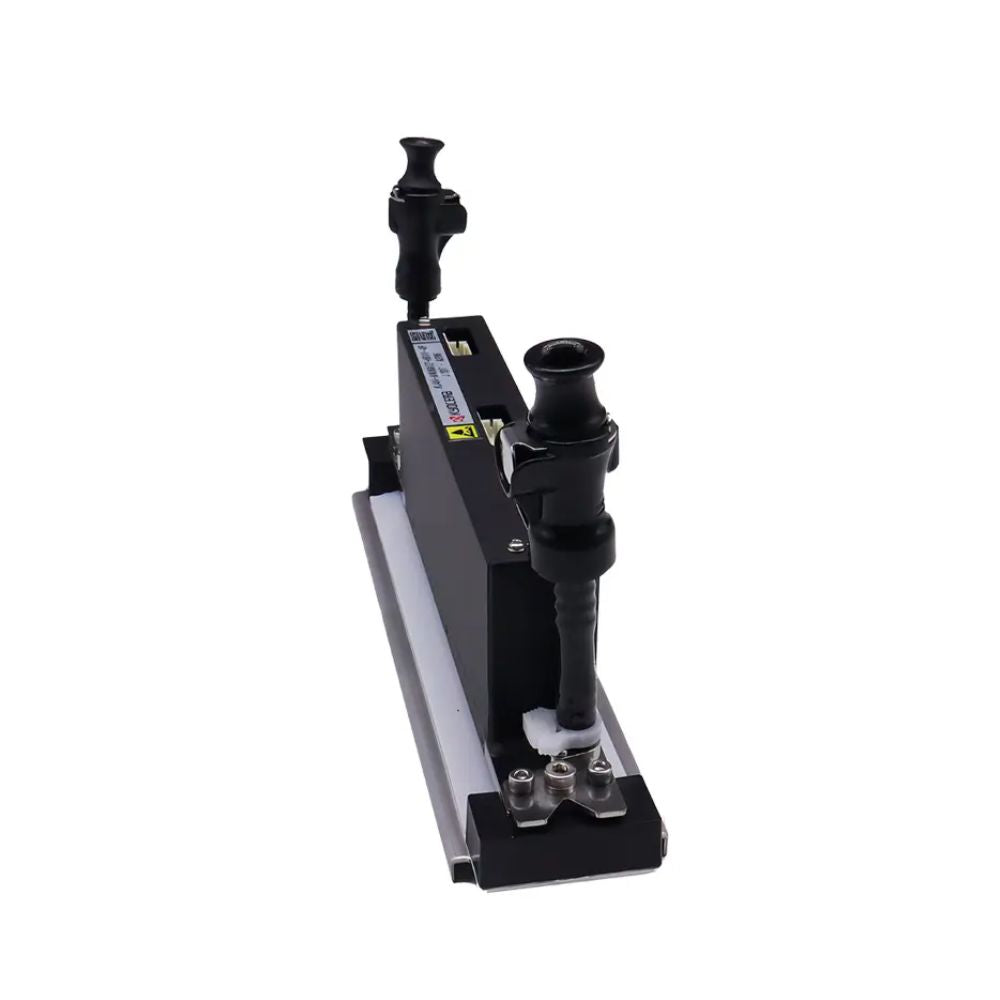

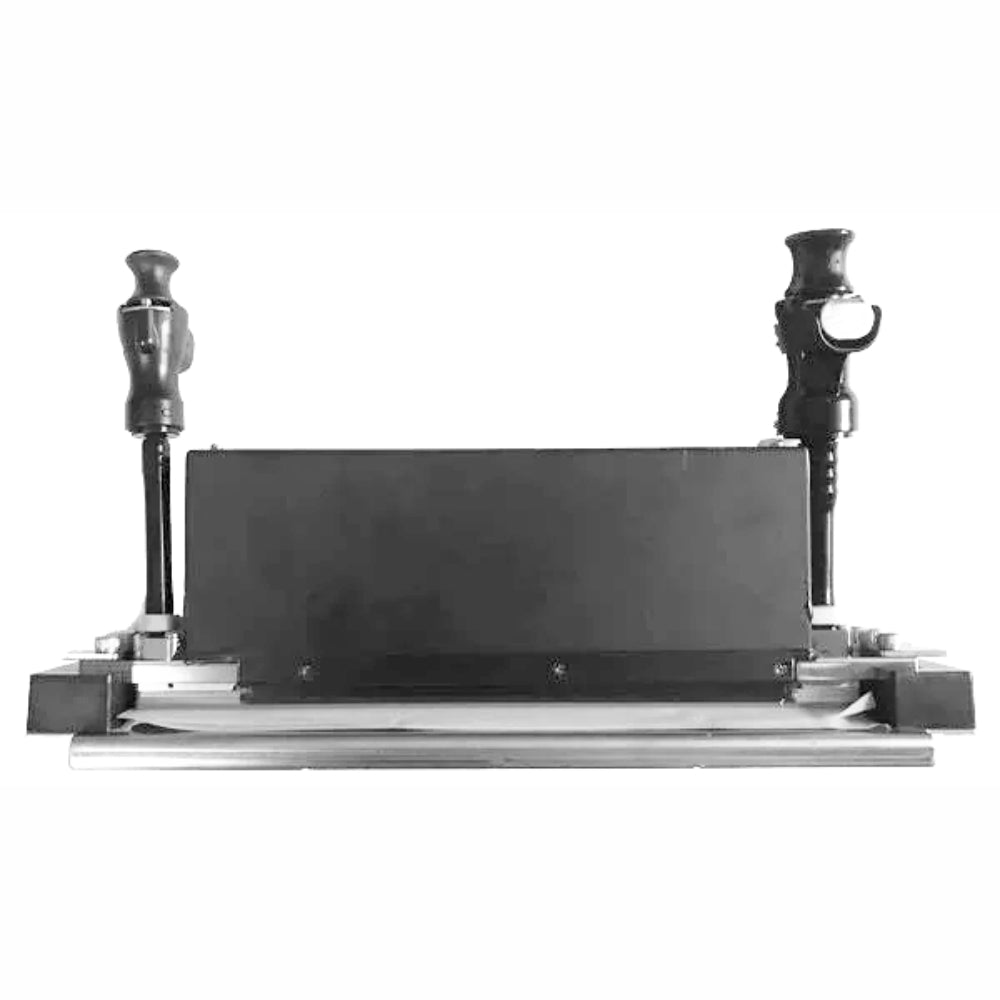

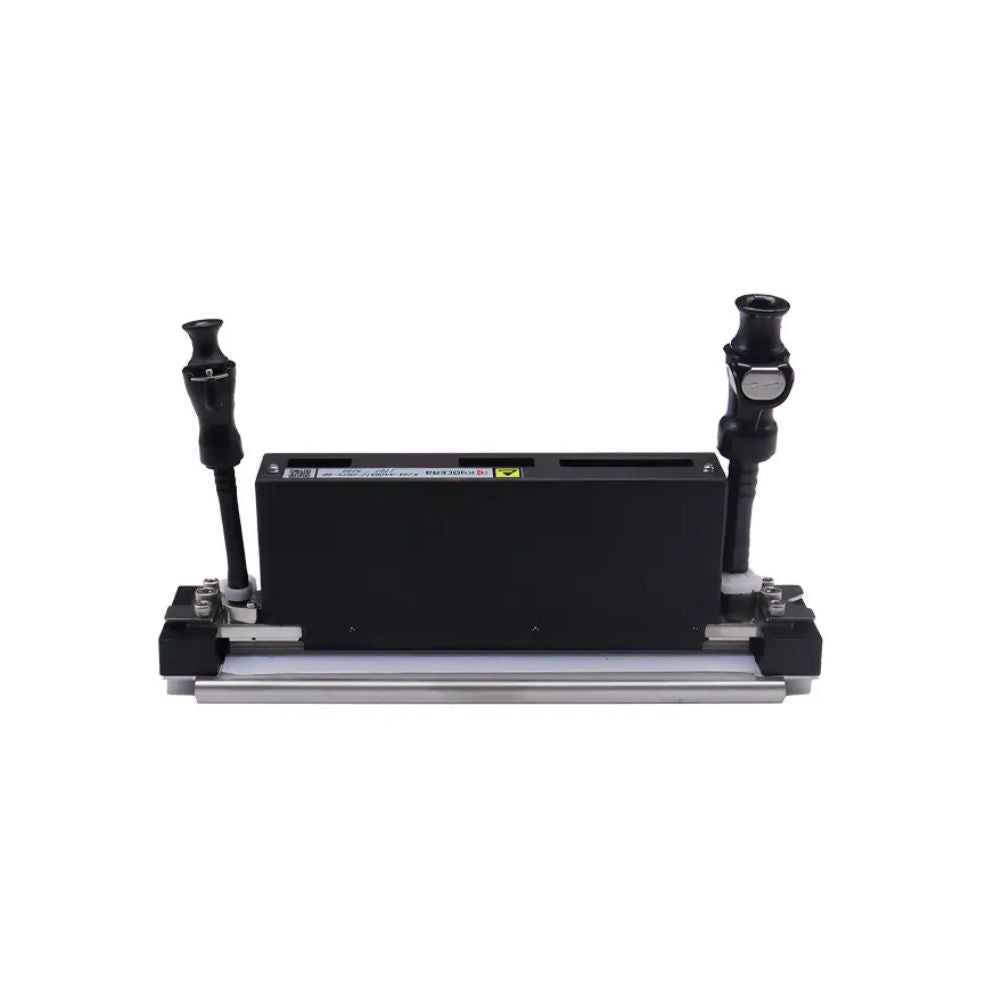

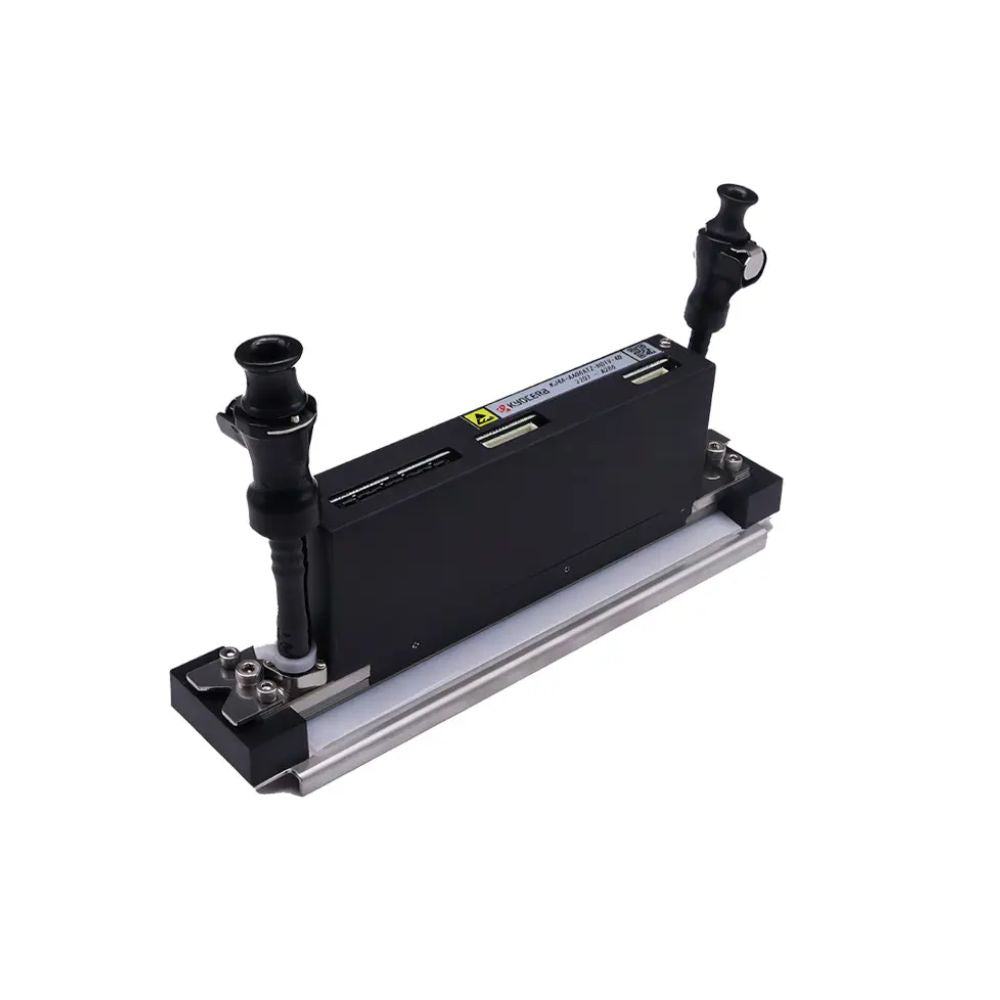

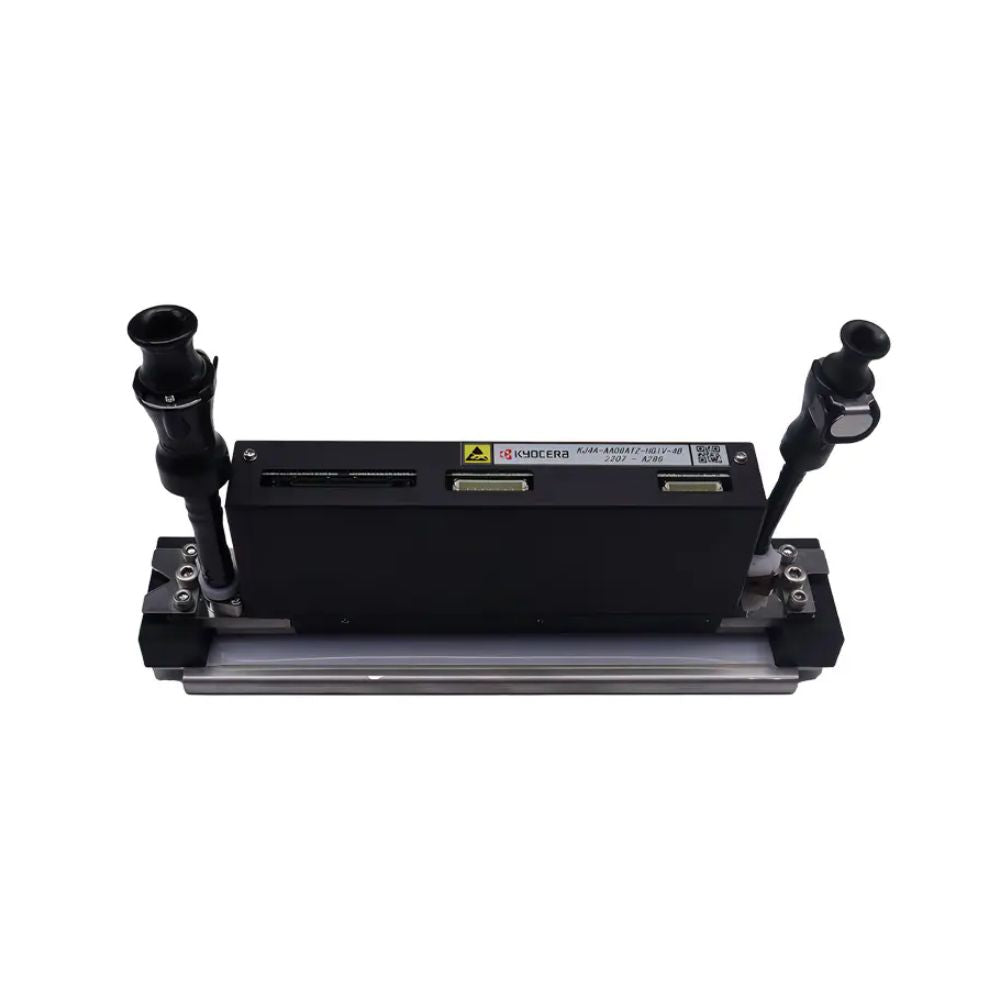

Kyocera KJ4A-AL Printhead - 600 x 600 dpi for UV Ink
Vendor:
Kyocera
- $3,543.00
- $3,543.00
- Unit price
- per
Subtotal:
$3,543.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview
Kyocera KJ4A-AL is a 600 x 600 dpi UV printhead in the KJ4A series. It is also associated with the older KJ4A-AA designation in market listings.
Model Identification
KJ4A-AL is the current Kyocera product-line designation. Some printer manuals or suppliers may still refer to the equivalent older KJ4A-AA naming, so confirm the old head label.
Technical Specifications
| Model | KJ4A-AL |
| Former / market designation | KJ4A-AA where applicable |
| Ink type | UV |
| Maximum drive frequency | 20 kHz |
| Standard resolution | 600 x 600 dpi |
| Print speed | 50.8 m/min |
| Drop volume | 3-17 pl |
| Nozzle recirculation | No |
| Dimensions | 200 x 25 x 57.9 mm |
| Nozzle count | 2,656 total / 2,558 effective in official table |
| Effective print width | 108.25 mm |
| Recommended ink viscosity | 6.0-7.0 mPa.s |
| Source note | Kyocera China official inkjet printhead product lineup |
Ink System Compatibility
Kyocera's product line lists KJ4A-AL for UV ink, with recommended ink viscosity of 6.0-7.0 mPa.s.
Applications
Used in compatible high-resolution UV label, packaging, offset surprint, product decoration and industrial UV printer systems.
Compatibility Confirmation Before Ordering
Confirm whether your printer requires KJ4A-AL or older KJ4A-AA packaging. Do not replace with KJ4B-QL or water-based versions.
Installation & Handling Notice
Kyocera KJ4 printheads are precision industrial components. Use trained technicians, antistatic handling, correct waveform, clean ink path, matched ink viscosity, stable temperature control and proper flushing procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can KJ4A and KJ4B replace each other? No. Kyocera identifies KJ4A as the UV / higher-viscosity platform and KJ4B as the water-based platform. Confirm the exact model and ink system before ordering.
What should I confirm before purchase? Send the old printhead label, printer model, ink type, cable photos, waveform/board information and nozzle-test status.
