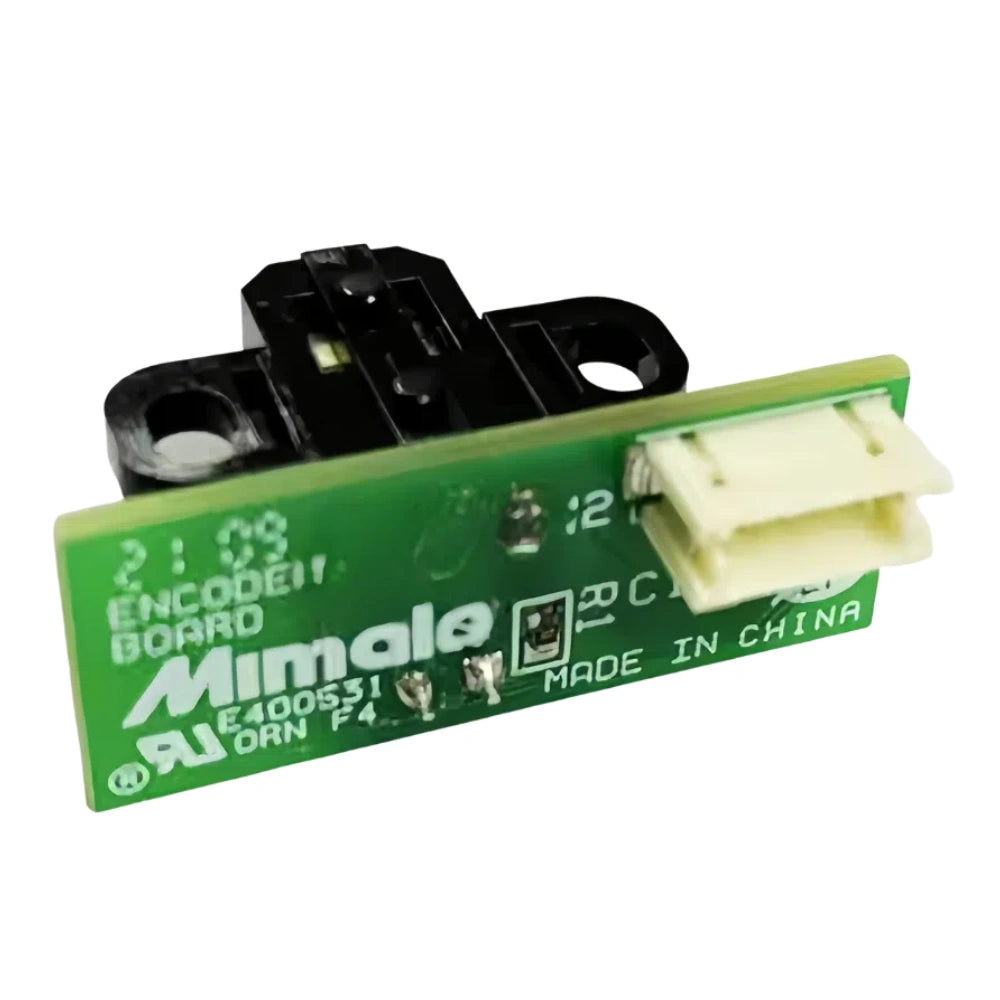

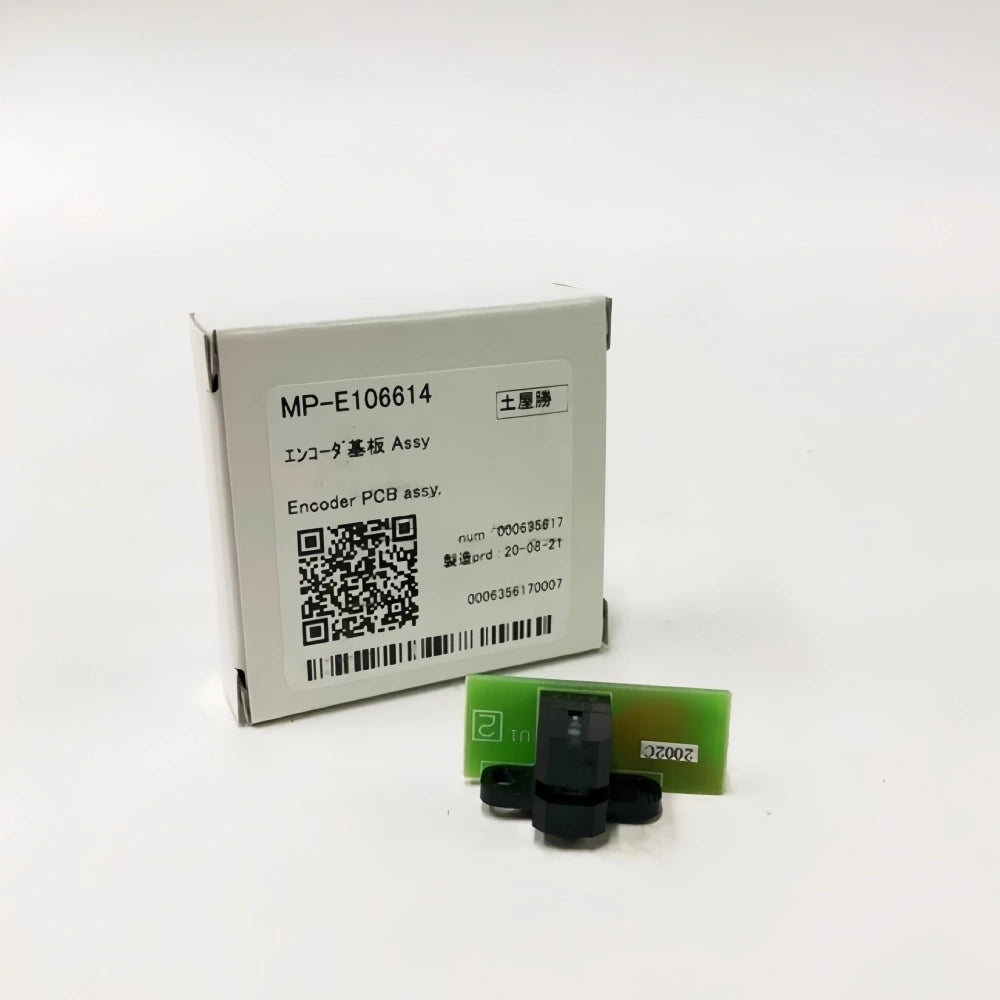

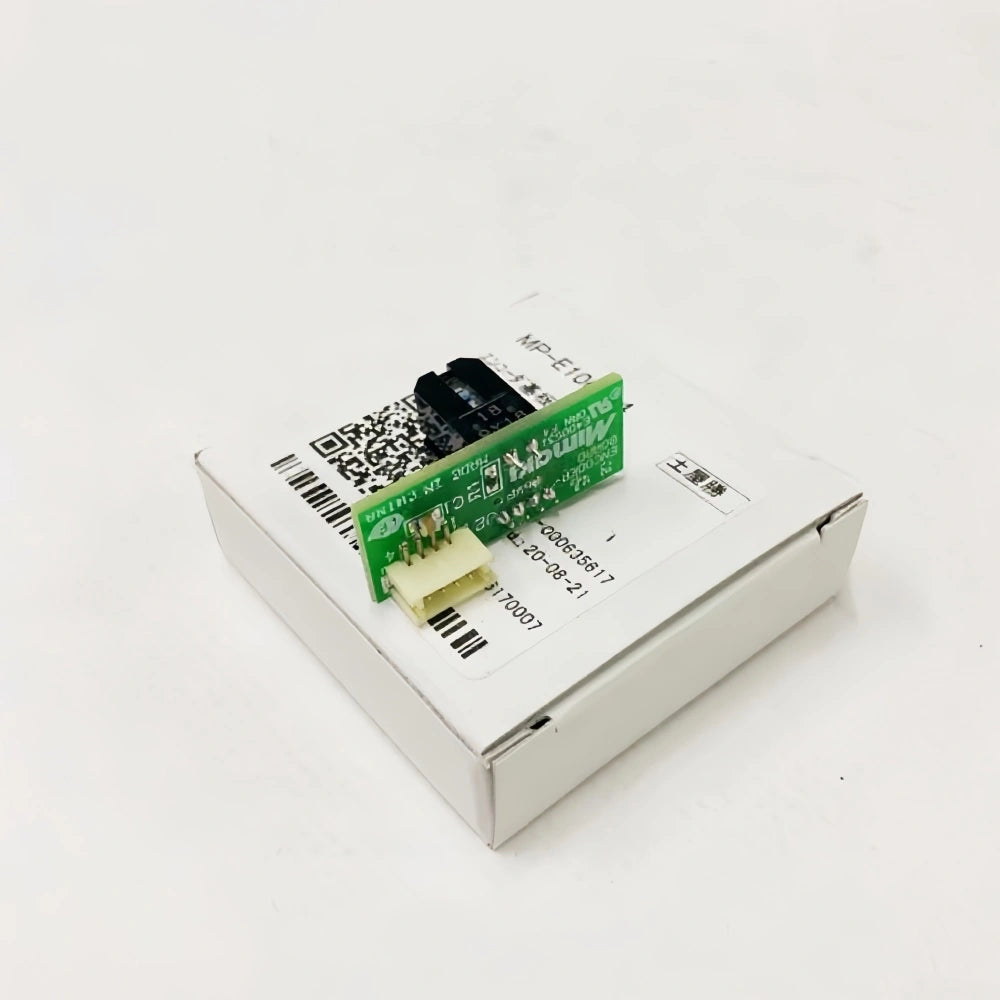

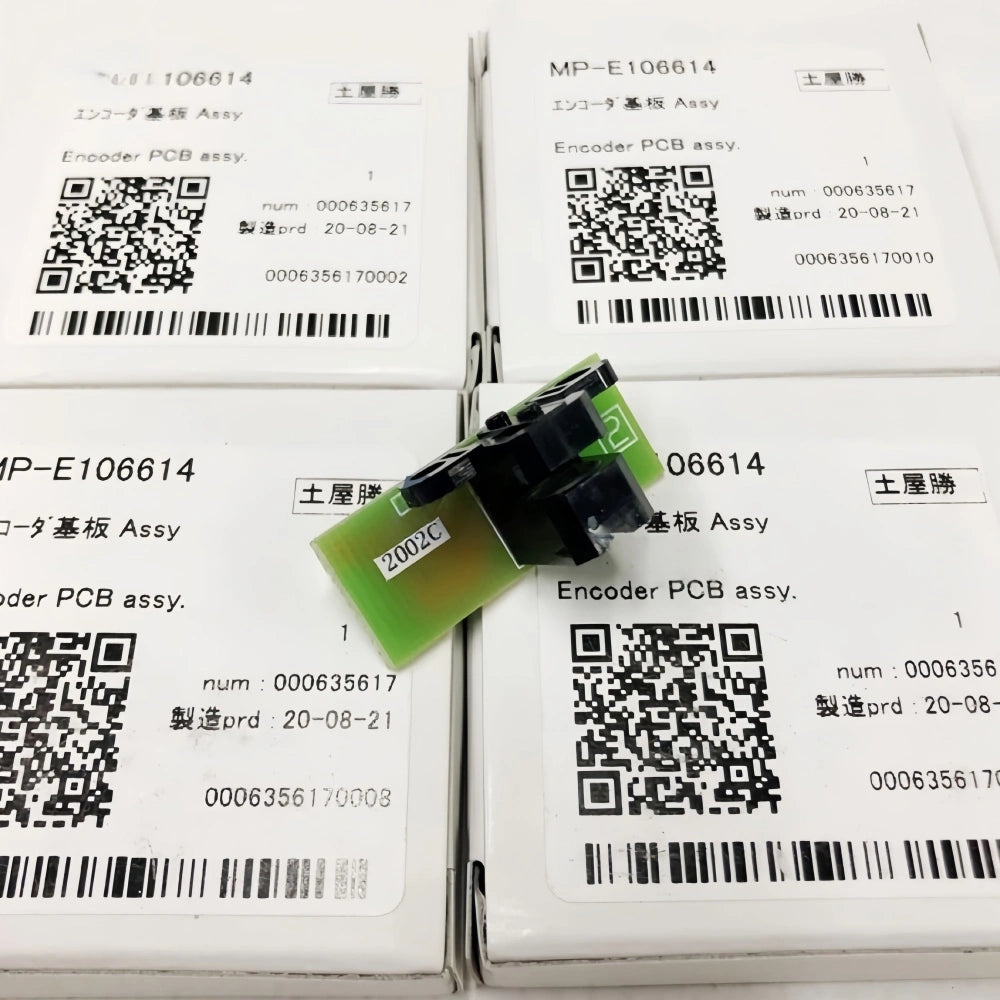

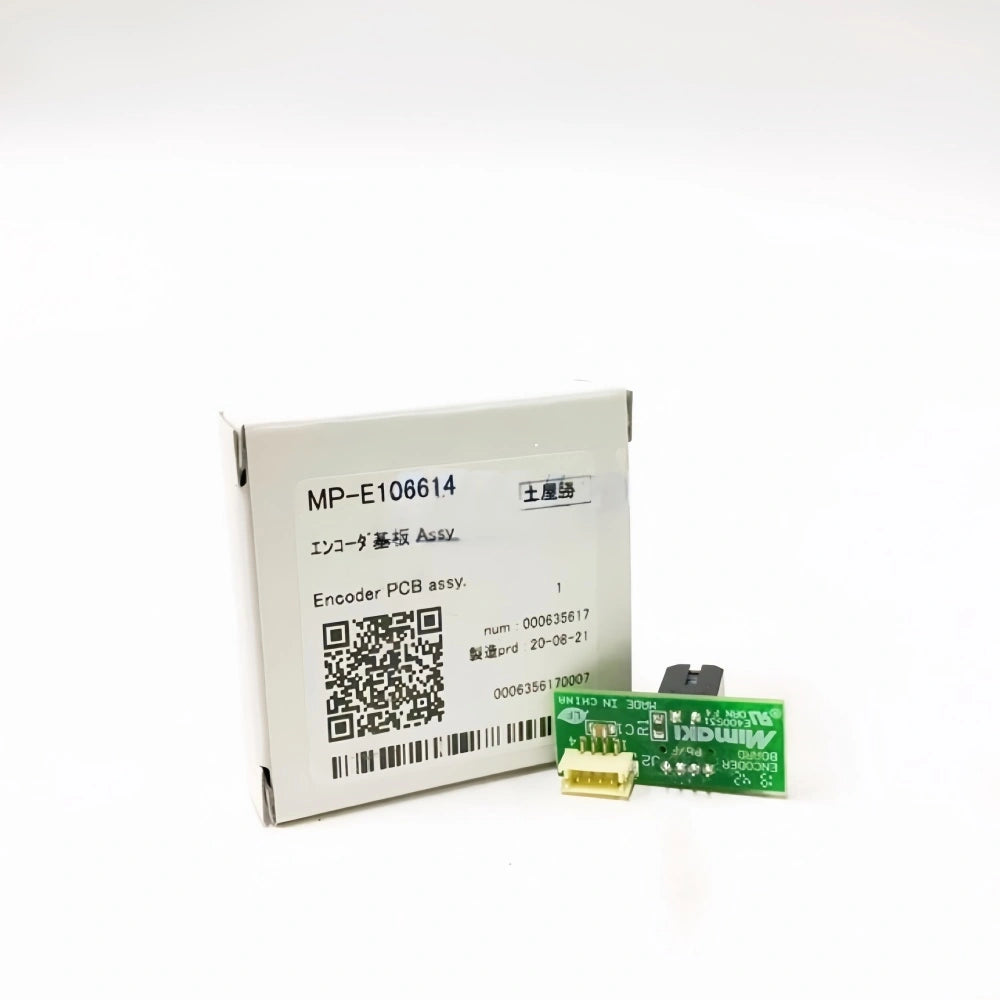

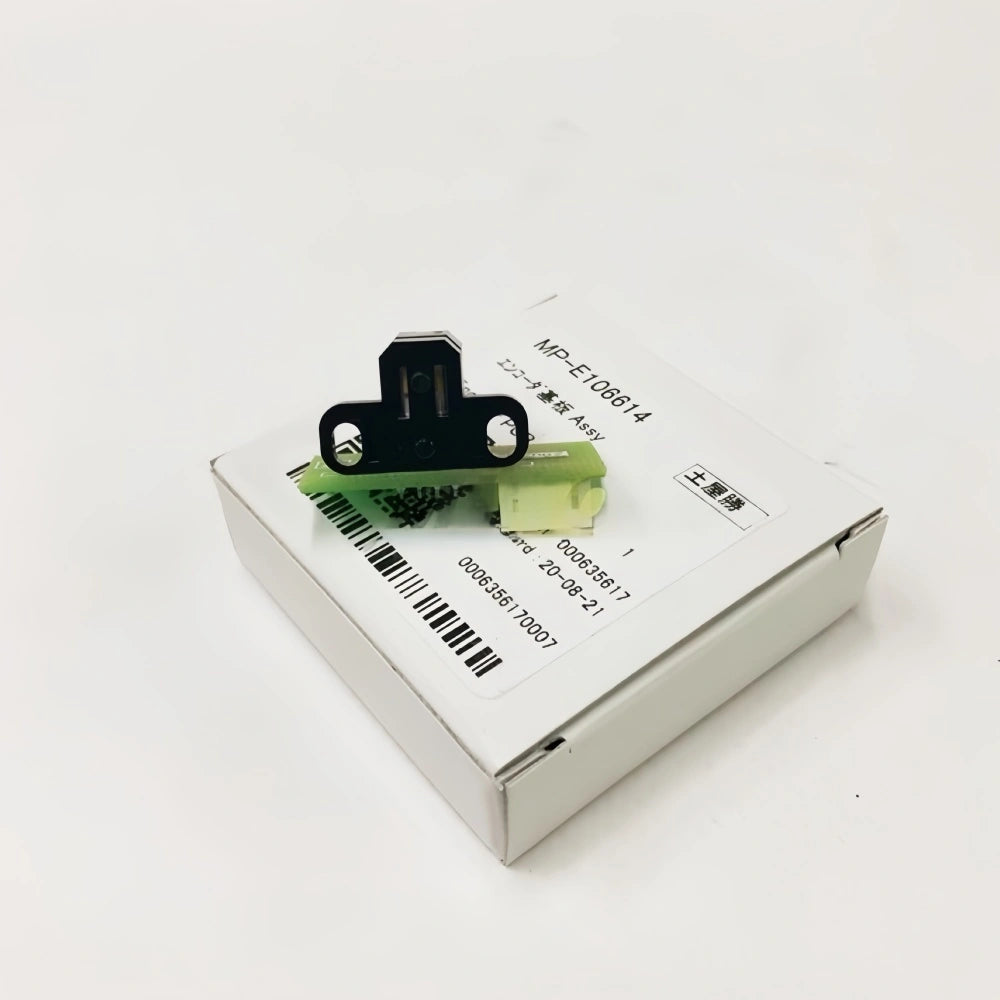

E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board

SKU: MP-E106614
$41.59
$41.59
Model: Original
Subtotal: $41.59
AfterPay American Express Apple Pay Diners Club Discover Google Pay JCB Klarna Maestro Mastercard PayPal Sofort Visa
Not sure if this product is right for you? Contact iColorPro.
Secure Ordering Premium Quality 24/7 Support On Time Delivery

Secure payments

Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols

Standard refund policy

Claim a refund if your order doesn't ship, is missing, or arrives with product issues
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board product image

E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board

$41.59
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board product image
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board image 2
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board image 3
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board image 4
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board image 5
E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board image 6

E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board

$41.59
Model: Original
Description
Description
x

Product Overview

E106614 - Original Mimaki JV33 / JV5 Linear Encoder Board is a original Mimaki motor, encoder, sensor, cable or power part identified by part number E106614. These parts must be selected by exact part number, printer model and service manual, because similar cables, scales, sensors and motors may have different length, pin count, voltage, firmware or connector orientation.

Part Number and Compatibility

Reference part number: E106614. Confirmed compatible models or printer families from the reference source: Mimaki CJV150 series, Mimaki CJV300 series, Mimaki CJV30 series, Mimaki JF-1631, Mimaki JFX-1615, Mimaki JFX200-2513, Mimaki JFX500-2131, Mimaki JV150 series, Mimaki JV300 series, Mimaki JV33 series, Mimaki JV5 series, Mimaki TS3-1600, Mimaki TS500-1800, Mimaki TS5-1600AMF, Mimaki TX500-1800B.

Replacement / warning note: Replaces E103961.

Technical Specifications

Part Number E106614
Product Type Linear Encoder Board
Condition Original
Brand / Reference Mimaki original part
Compatible Models Mimaki CJV150 series, Mimaki CJV300 series, Mimaki CJV30 series, Mimaki JF-1631, Mimaki JFX-1615, Mimaki JFX200-2513, Mimaki JFX500-2131, Mimaki JV150 series, Mimaki JV300 series, Mimaki JV33 series, Mimaki JV5 series, Mimaki TS3-1600, Mimaki TS500-1800, Mimaki TS5-1600AMF, Mimaki TX500-1800B
Source Note Digiprint lists E106614 as an original Mimaki JV33 / JV5 Linear Encoder Board replacing E103961.

Before Ordering

Send the label on the old part, printer model, photos of the connector or installed position, and the related service error before purchase. For motors and encoder parts, also confirm axis direction, cable length, scale length, pulley status and sensor type.

Installation Notice

Use a trained technician. Power off and discharge the printer before replacement, protect boards and sensors from static electricity, confirm cable orientation, and run service calibration after installation.

FAQ

Can this replace a similar-looking cable or motor? Only if the part number or official replacement relationship matches your machine.

Why is confirmation needed? Mimaki electrical and motion parts can share similar names while using different lengths, voltages, pin counts or firmware-related interfaces.
