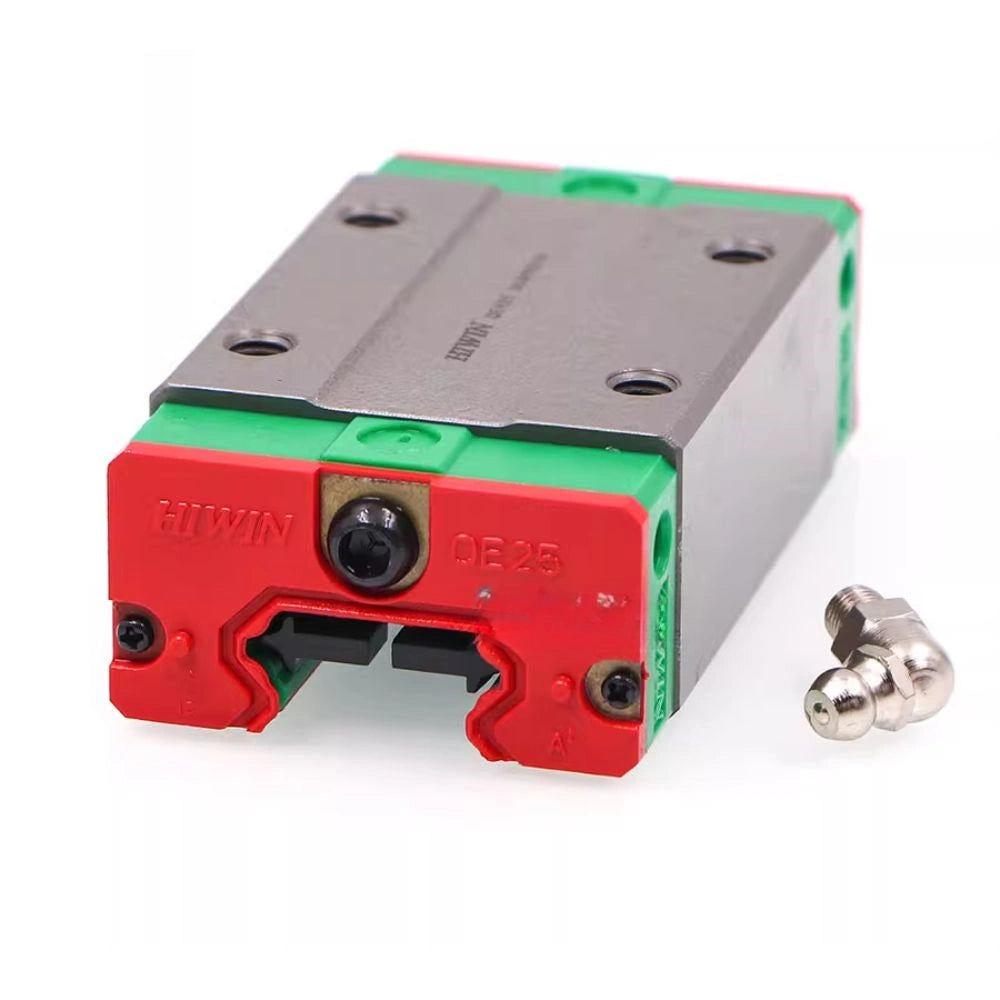

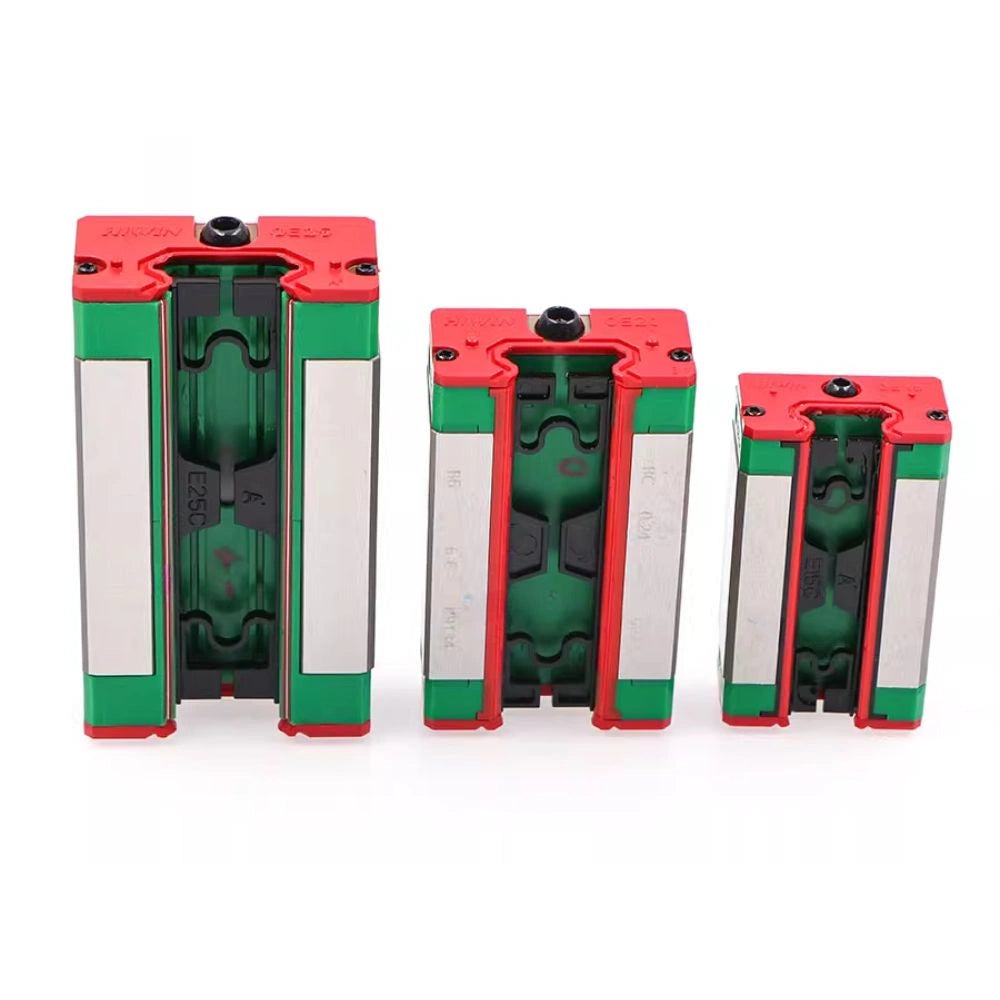

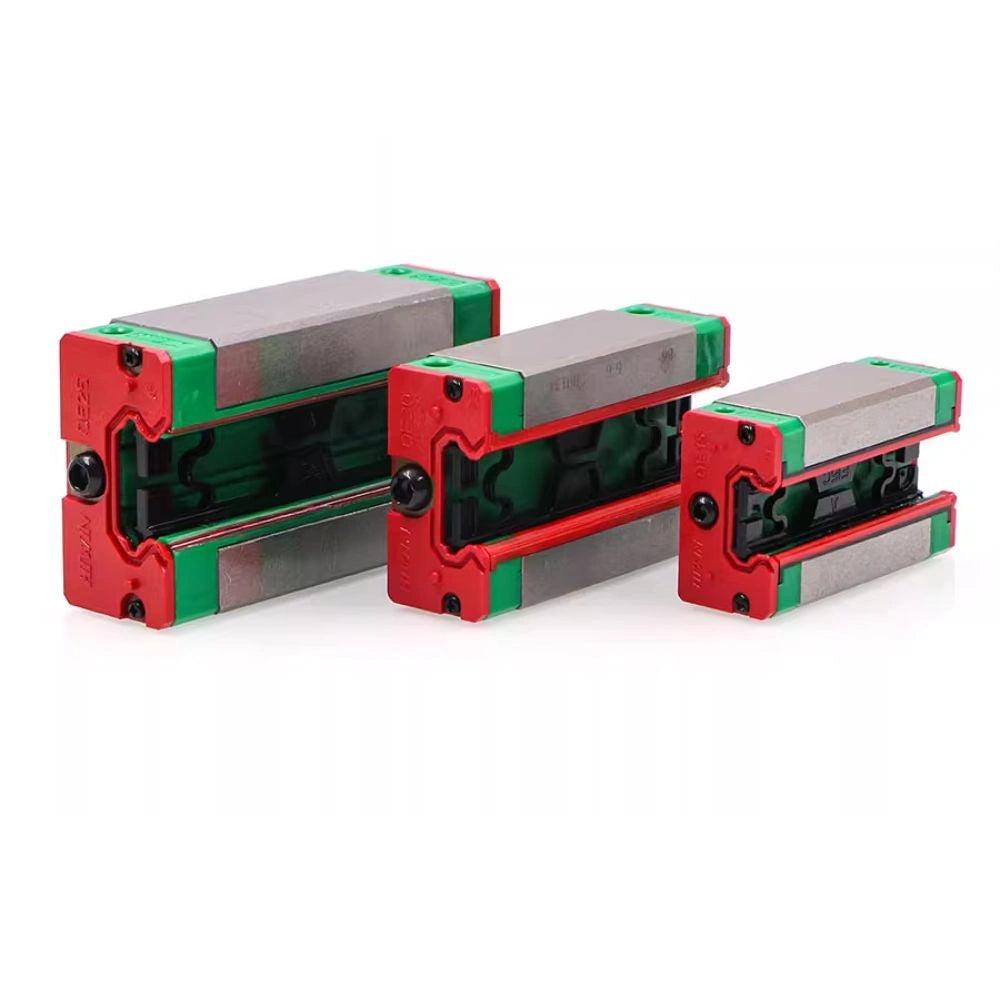

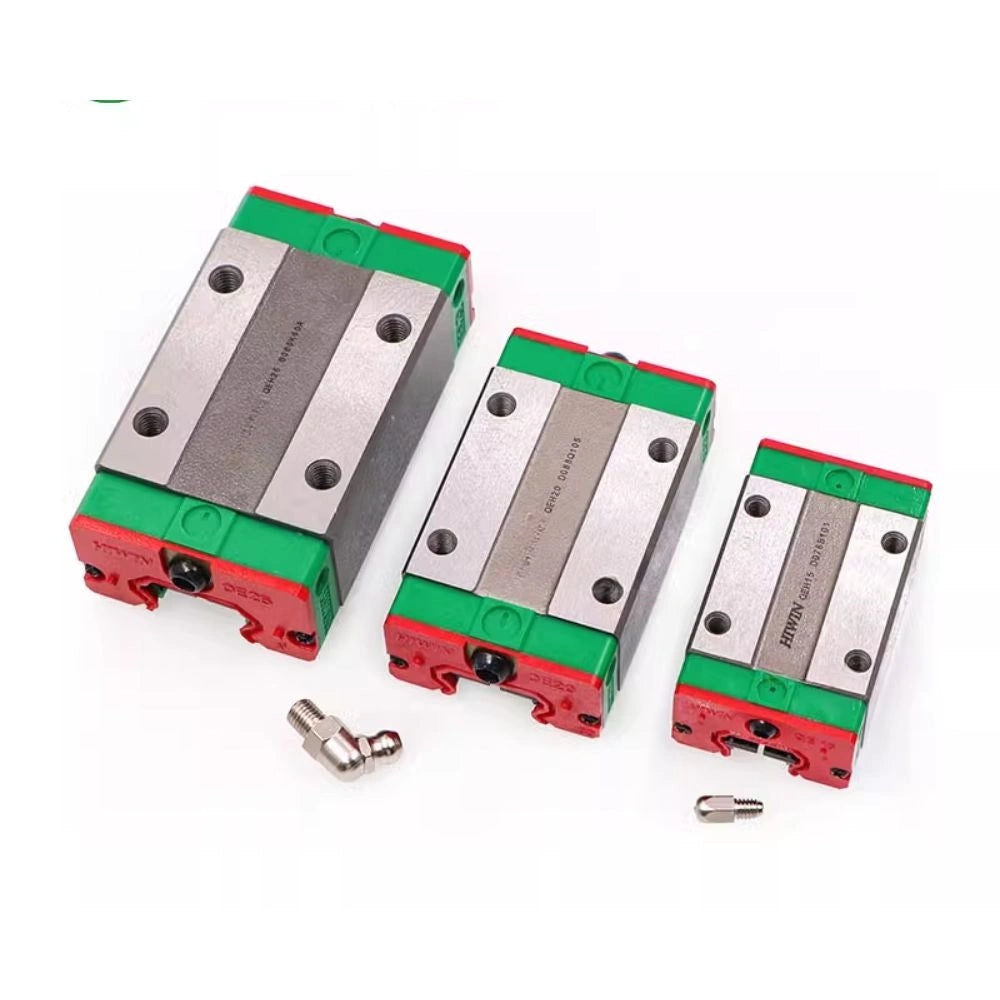

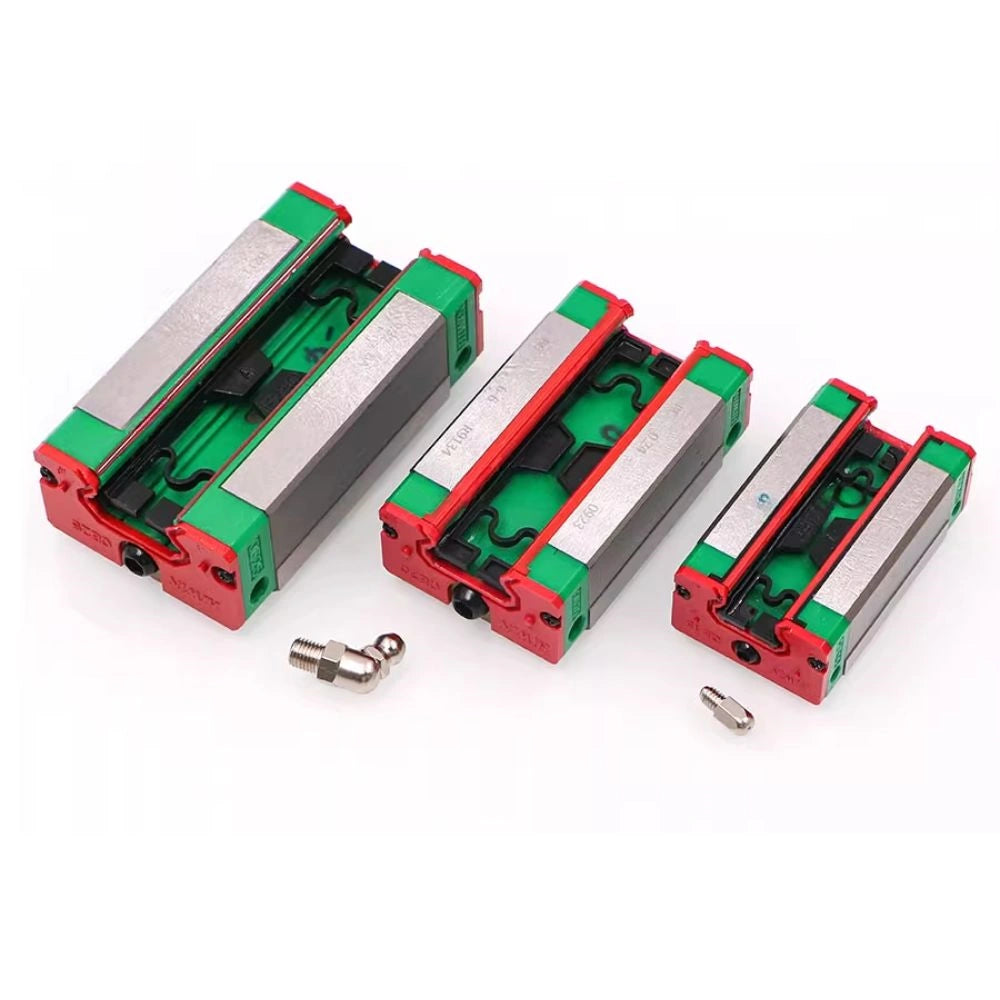

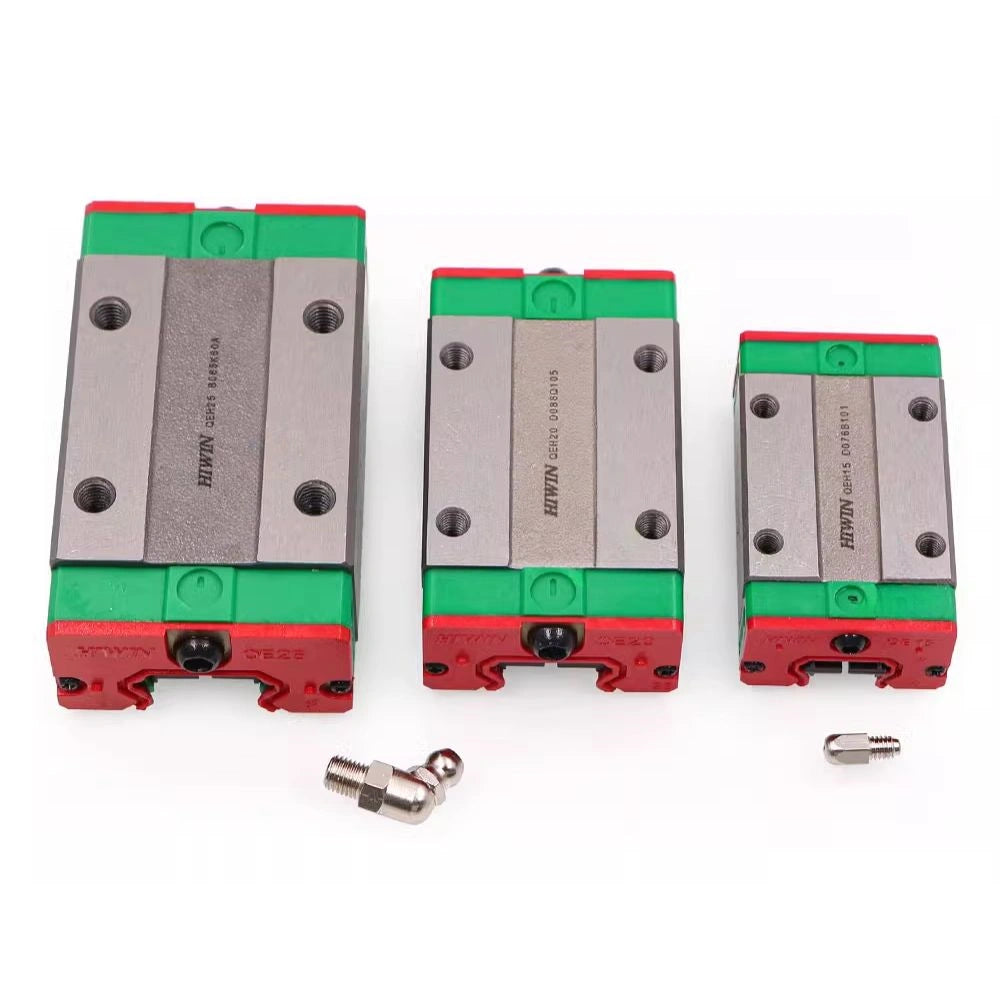

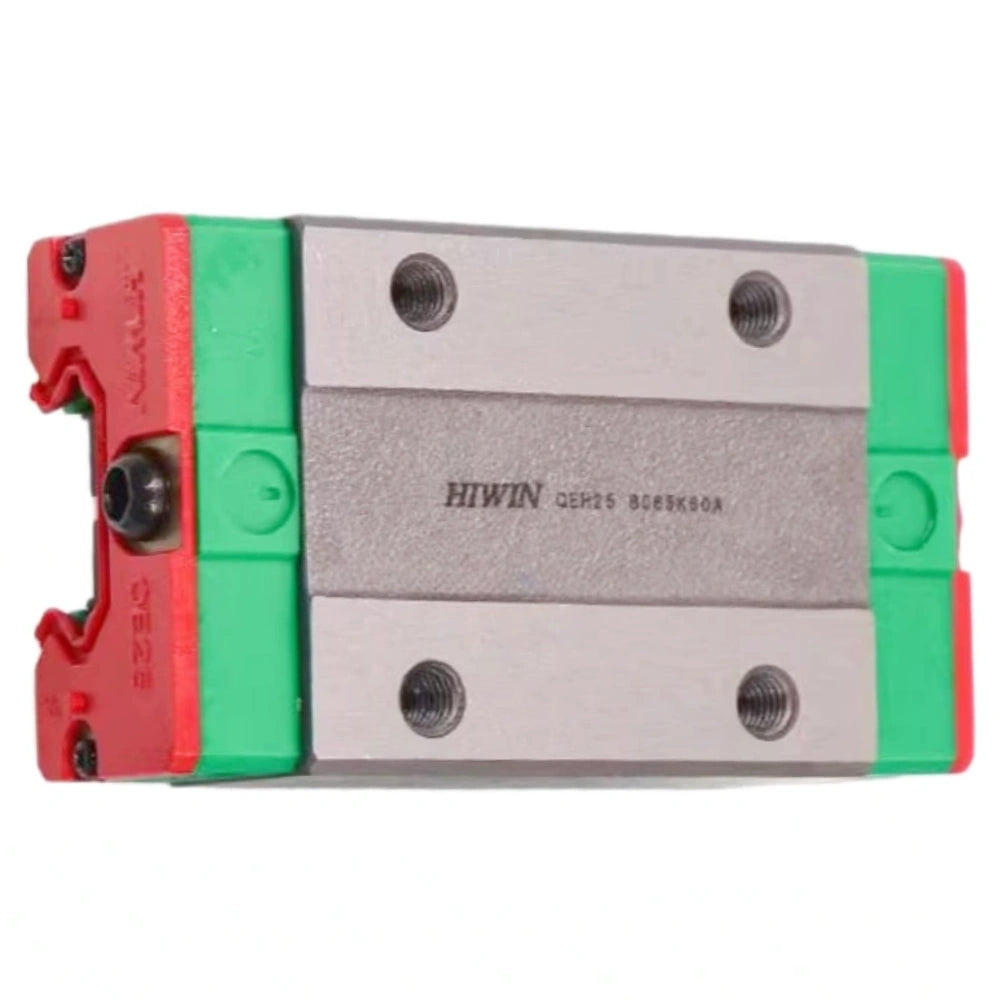

QEH15/20/25 - Linear Guide Slider
SKU:
Slider - 002
- $63.80
- $63.80
- Unit price
- per
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Description
xProduct Overview
QEH15/20/25 - Linear Guide Slider is a replacement linear guide slider for printer carriage, table, gantry or other linear motion assemblies. Select the slider by exact body marking, rail size, mounting hole spacing, block height and installed position.
Compatibility and Use

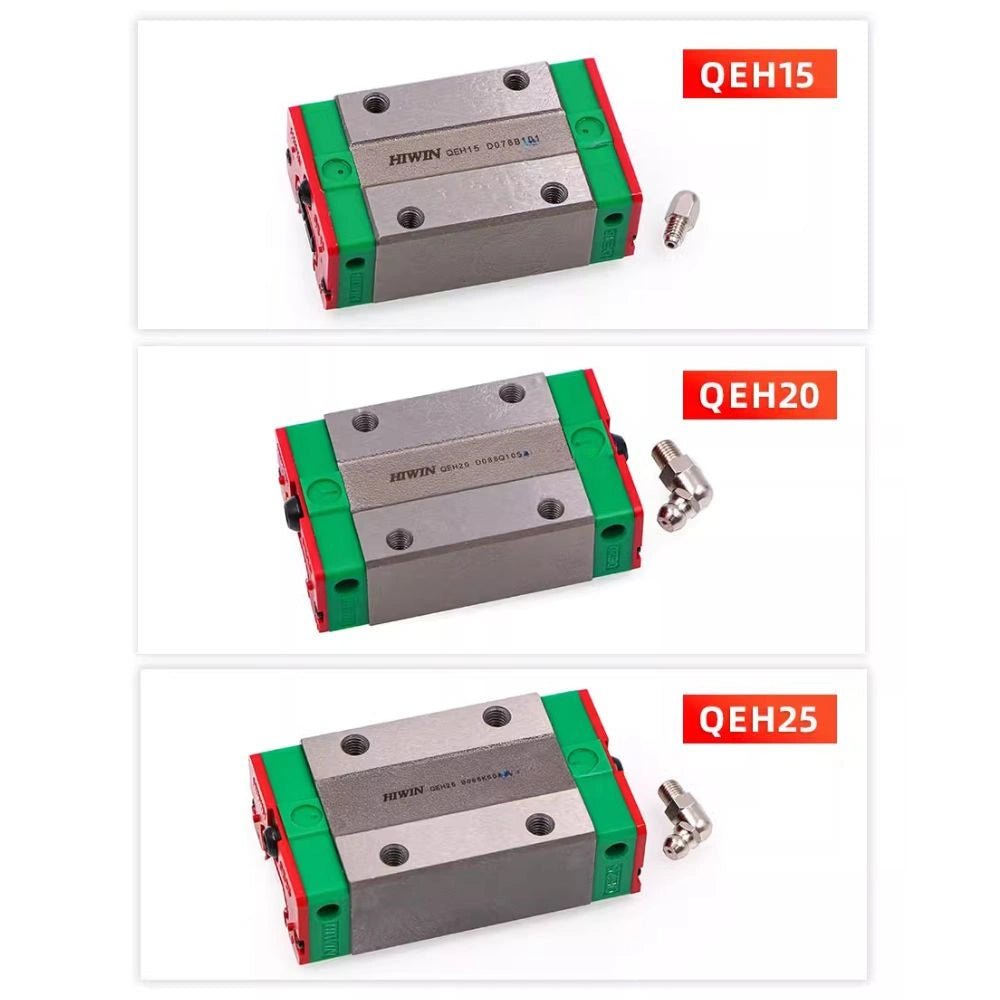

Application reference: large format printer carriage, table, gantry or linear motion system; confirm by old slider model and guide rail. Model reference: QEH15/20/25.
Technical Specifications
| Source SKU / Rows | Slider - 002 / 滑块，风扇 row 3 |
| Part Type | Linear Guide Slider |
| Model / Rail Reference | Model reference: QEH15/20/25; rail size hints: 20, 25 |
| Application Reference | large format printer carriage, table, gantry or linear motion system; confirm by old slider model and guide rail |
| Variant Options | Default Title (Slider - 002) |
Available Options
| SKU | Variant Option |
|---|---|
| Slider - 002 | Default Title |
Before Ordering
Confirm the old slider model code, guide rail width, block length, block height, mounting hole spacing, preload/clearance requirement and installed axis. Sliders with similar appearance may not fit if the rail size, hole spacing or height differs.
Installation Notice
Keep the guide rail clean during replacement. After installation, check lubrication, slider travel, gantry/carriage alignment, belt tension, motor load and homing before production printing.
FAQ
Can I choose by printer model only?
No. Match the old slider code and rail size first.
What should I send if unsure?
Send photos of the old slider marking, guide rail, mounting holes, installed position and printer model.
