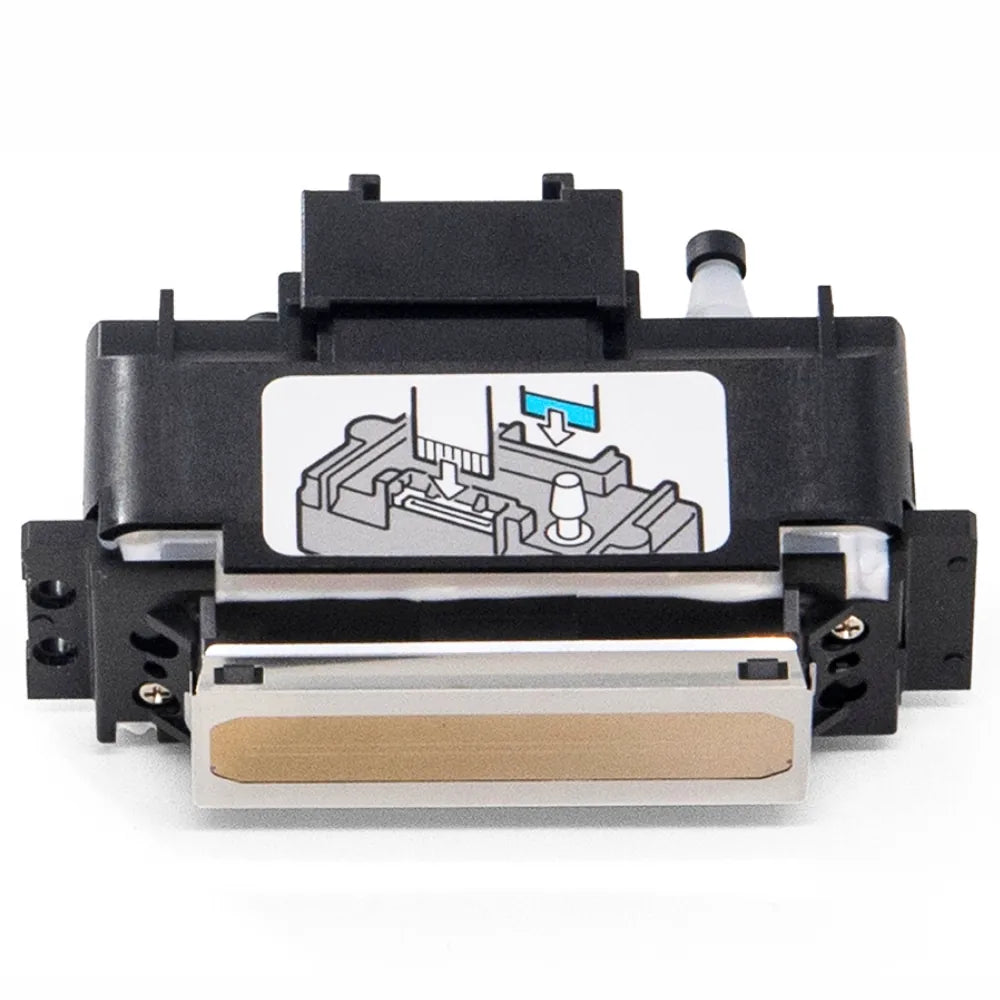

Ricoh GH2220 Printhead for Aqueous & Solvent Ink Systems
Vendor:
Ricoh
- $558.00
- $558.00
- Unit price
- per
Subtotal:
$558.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview
Ricoh GH2220 is a compact silicon-based industrial inkjet printhead for compatible aqueous and solvent ink printer systems.
Model Identification
This page is for Ricoh GH2220. It is different from Ricoh Gen4 MH2420, Gen5 MH5420 / MH5440 and TH5241 / Gen5i.
Technical Specifications
| Official model | RICOH GH2220 |
| Method | Piston pusher with metallic diaphragm plate |
| Print width | 32.4 mm / 1.28 inches |
| Number of nozzles | 384 |
| Nozzle spacing | 1/150 inch / 0.1693 mm per row |
| Row distance | 0.931 mm |
| Compatible ink | Aqueous, Solvent |
| Dimensions | 61.8(W) x 23.3(D) x 40.5(H) mm |
| Weight | 38 g |
| Max color inks | 2 colors |
| Temperature control | No heater or thermistor |
| Life | 30 billion actuations per nozzle under Ricoh test conditions |
| Jetting frequency | Binary: 30 kHz; grey-scale: 24 kHz |
| Drop volume | Binary: 3-5 pl; grey-scale: 21 +/- 2 pl |
| Viscosity range | 8 +/- 0.5 mPa.s at 25 C |
| Surface tension | 25 +/- 5 mN/m at 23 +/- 2 C |
| Maximum grey scale | 4 levels |
| Source note | Ricoh official GH2220 specification page |
Ink System Compatibility
Ricoh officially lists GH2220 compatible ink as aqueous and solvent. If a UV printer claims GH2220 compatibility, confirm the exact printer configuration and ink supplier before ordering.
Applications
Used in compatible sign graphics, textile, coding, marking and compact printer systems where GH2220 is specified.
Compatibility Confirmation Before Ordering
Send the old head label and printer model before ordering. Do not assume GH2220 can replace a Ricoh MH-series printhead.
Installation & Handling Notice
Printheads are precision components. Use trained technicians, antistatic handling, correct cables, clean ink path, matched waveform, stable negative pressure and proper maintenance procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can I choose by the name Gen5, Gen6 or Gen5i only? No. Always confirm the exact Ricoh model code on the old printhead label, such as MH5420, MH5440, MH5320, MH5340, TH5241, MH2420 or GH2220.
Can one Ricoh printhead replace another Ricoh model? Not automatically. Cable, board, firmware, waveform, ink path, ink port and printer settings may differ.
