Seiko Instruments SPT 508GS Printhead - 12-84pl Grayscale
Vendor:
Seiko Instruments
- $2,638.00
- $2,638.00
- Unit price
- per
Subtotal:
$2,638.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview

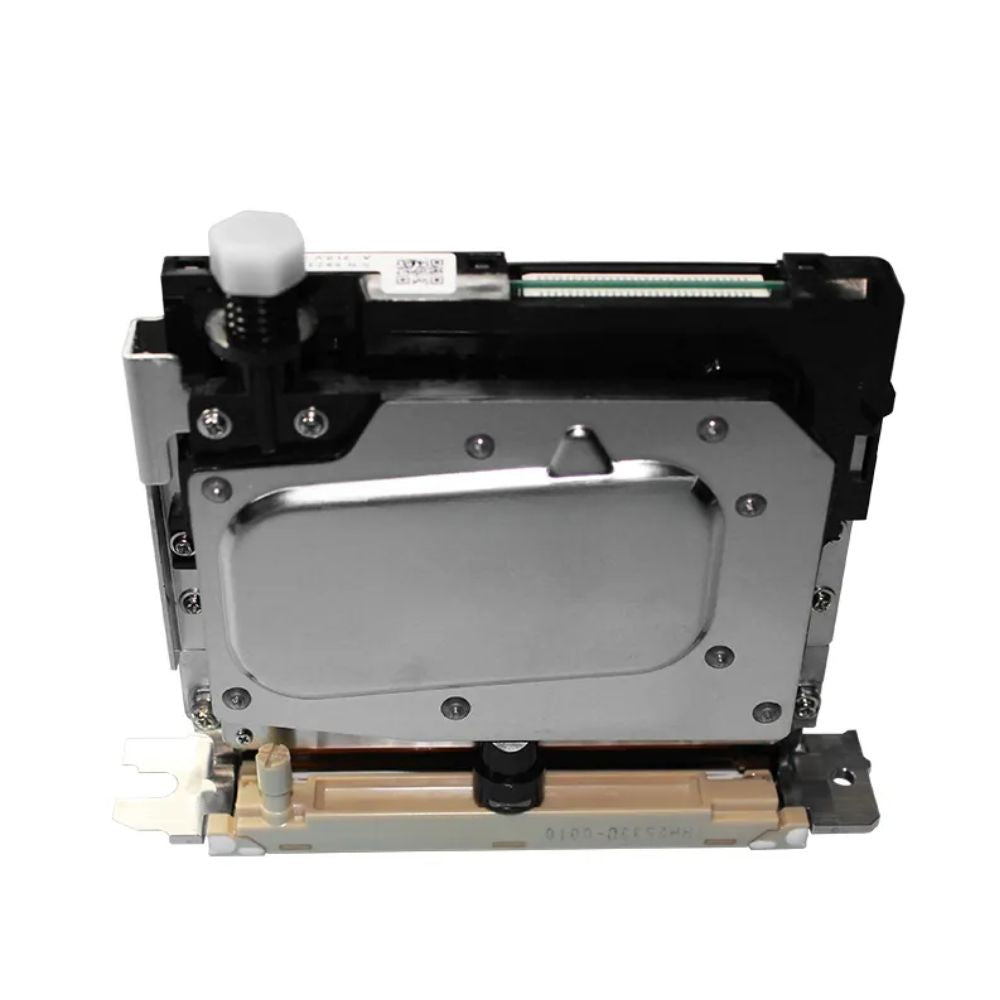

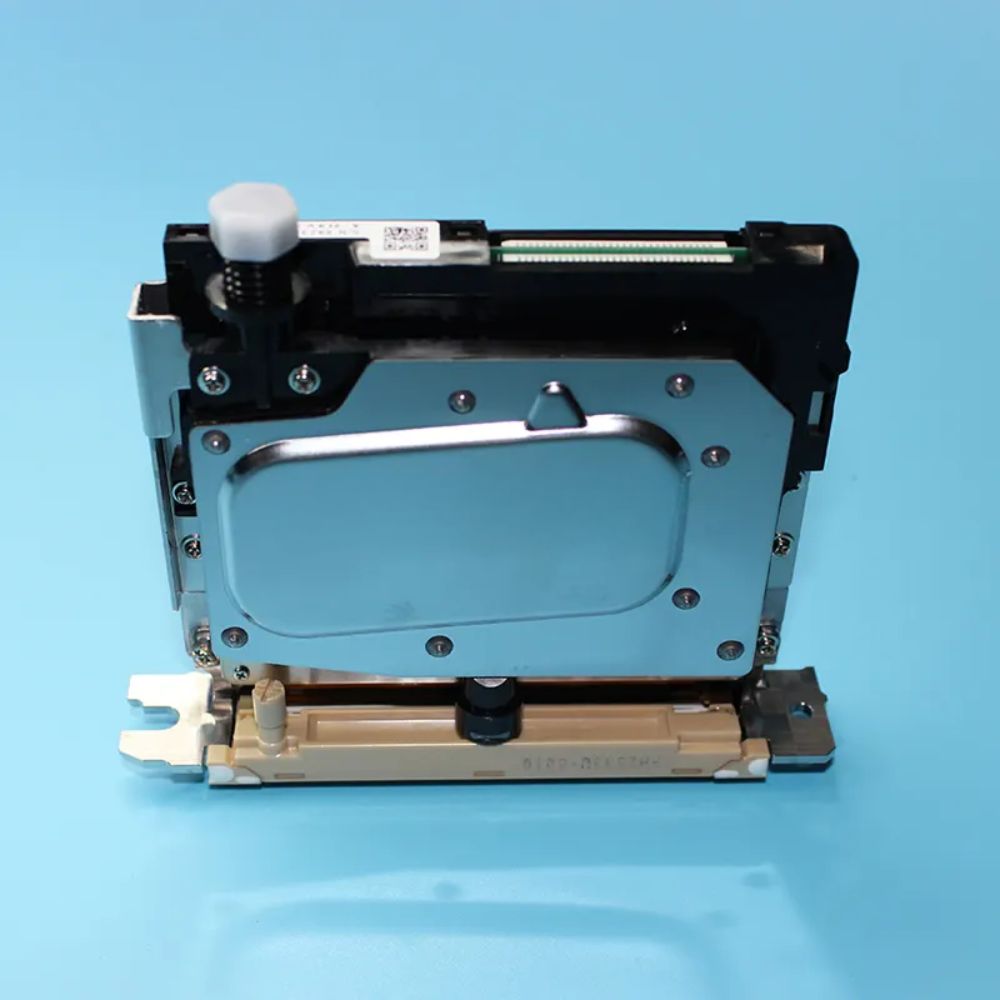

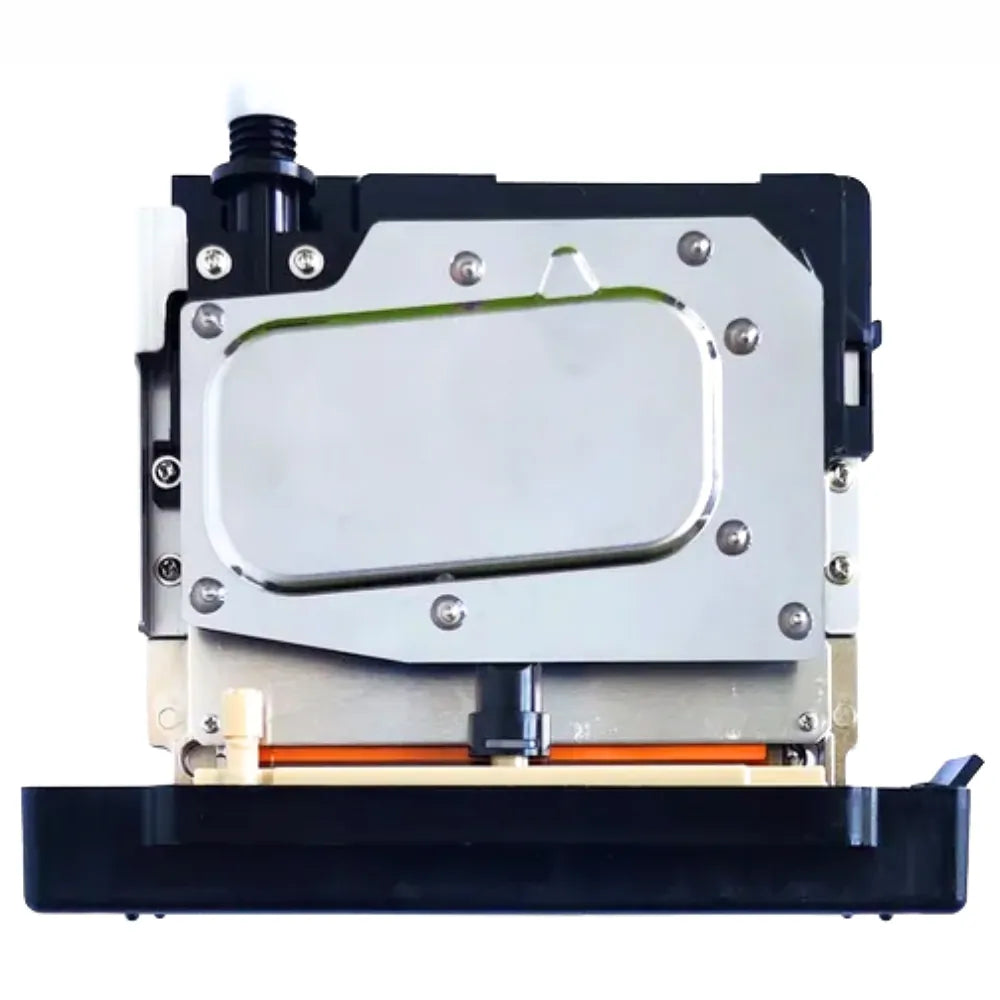

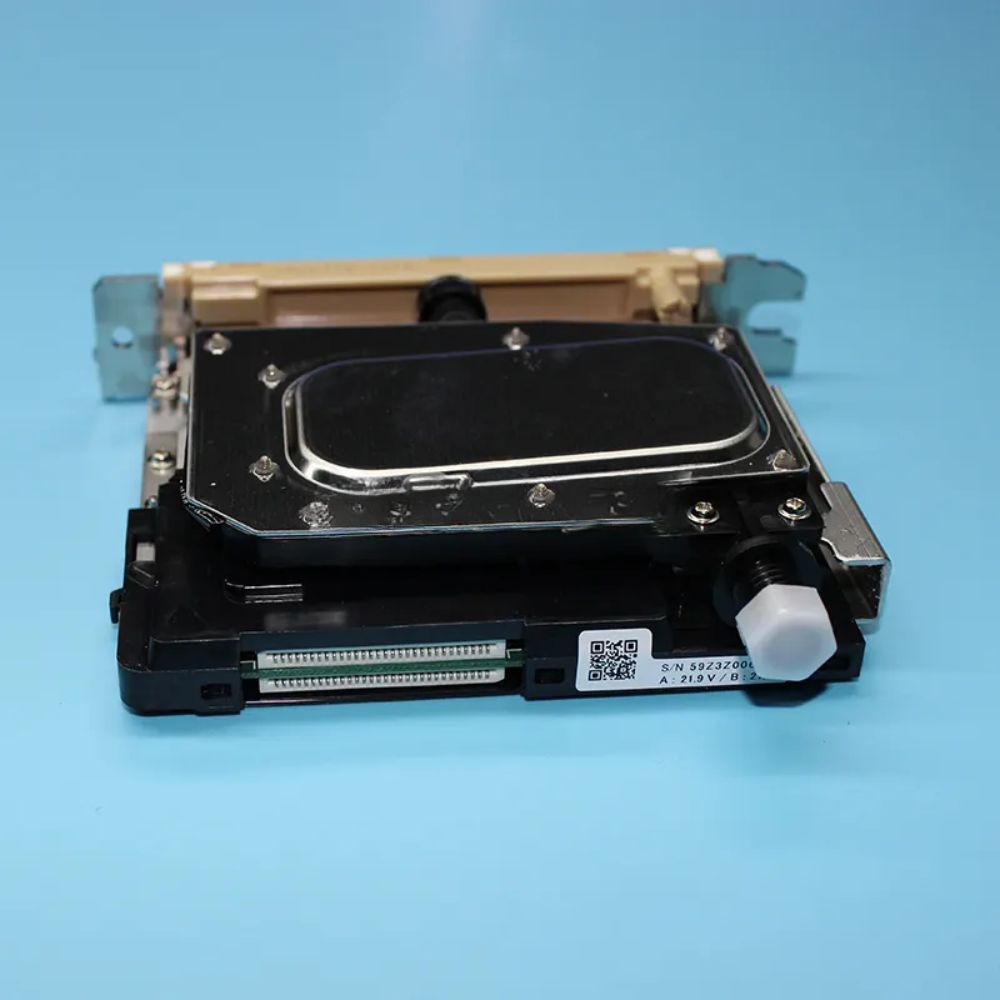

Seiko Instruments SPT 508GS is a grayscale industrial piezo printhead for multiple ink chemistries and broad industrial printing applications.
Model Identification
This product is SPT 508GS, not SPT510-35PL. 508GS is a grayscale printhead with 508 active nozzles and a 12-84pl drop volume range.
Technical Specifications
| Model | SPT 508GS |
| Series | Greyscale Series |
| Active nozzles | 508 |
| Native nozzle resolution | 180 npi |
| Print width | 71.54 mm |
| Drop volume range | 12-84 pl |
| Grey levels | 4 |
| Jetting frequency | 1 drop binary: 28 kHz; 2 drops: 24 kHz; 3 drops: 18 kHz; grayscale 4-level: 14 kHz |
| Ink inlets | 1 |
| Usable ink types | Oil-based, UV, solvent and water-based |
| Print directions | Vertical and horizontal |
| Maximum productivity | 320 uL/sec/head |
| Dimensions | 121.0 x 28.2 x 123.6 mm |
| Weight | Less than 300 g |
| Driving interface | Parallel Interface |
| Heater | Optional |
| Source note | Seiko Instruments official 508GS product page |
Ink System Compatibility
Seiko Instruments lists SPT 508GS as usable with oil-based, UV, solvent and water-based inks. Final compatibility depends on the printer's waveform, ink path and maintenance setup.
Applications
Used in compatible textile, coding and marking, pharmaceutical, cardboard, packaging, signage and industrial inkjet systems.
Compatibility Confirmation Before Ordering
Confirm the old head label is 508GS and verify the printer supports the required ink chemistry, grey levels and driving interface before ordering.
Installation & Handling Notice
Seiko SPT printheads are precision piezo inkjet components. Use trained technicians, antistatic handling, correct waveform, clean ink path, stable negative pressure and proper flushing procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can SPT508GS, SPT510 and SPT1020 replace each other? No. Confirm the exact SPT model, drop volume, cable, waveform and printer board before replacement.
What should I send before ordering? Send the old printhead label, printer model, ink type, cable photos and nozzle-test status.
