Seiko SPT 510-35PL Printhead - 35pl for Solvent & UV Ink
Vendor:
Seiko Instruments
- $1,221.00
- $1,221.00
- Unit price
- per
Subtotal:
$1,221.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview

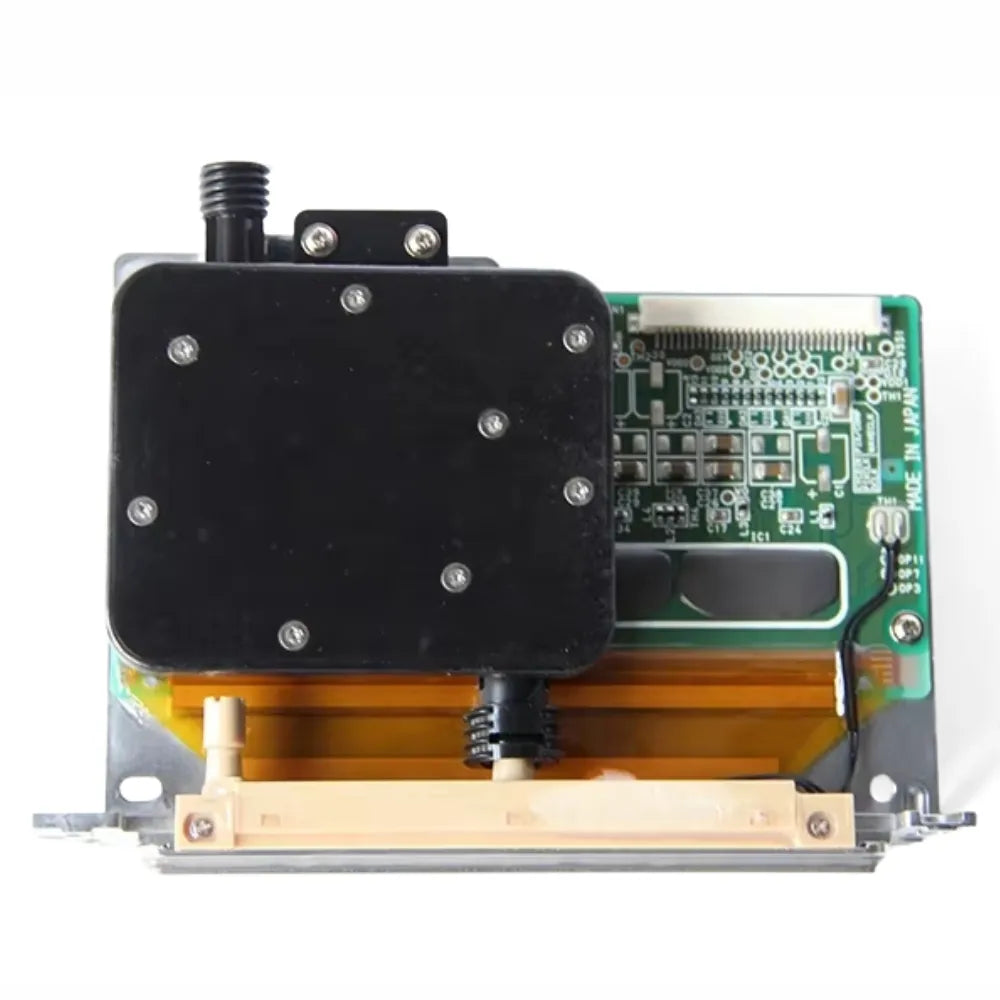

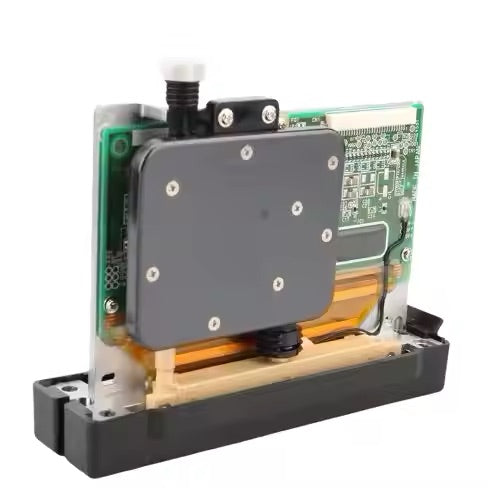

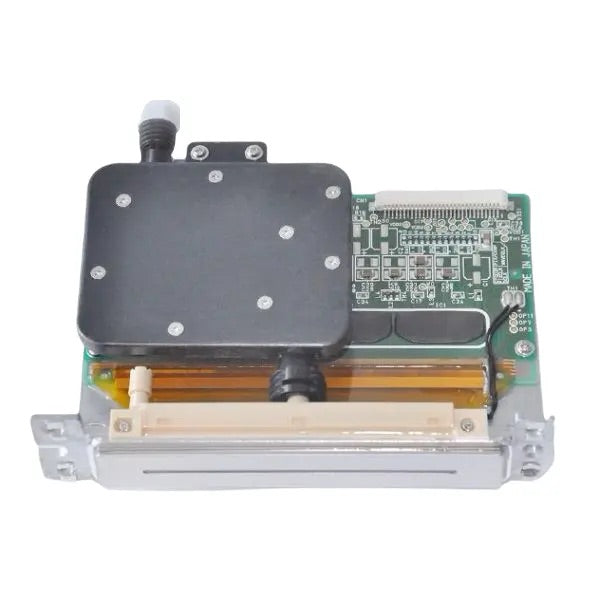

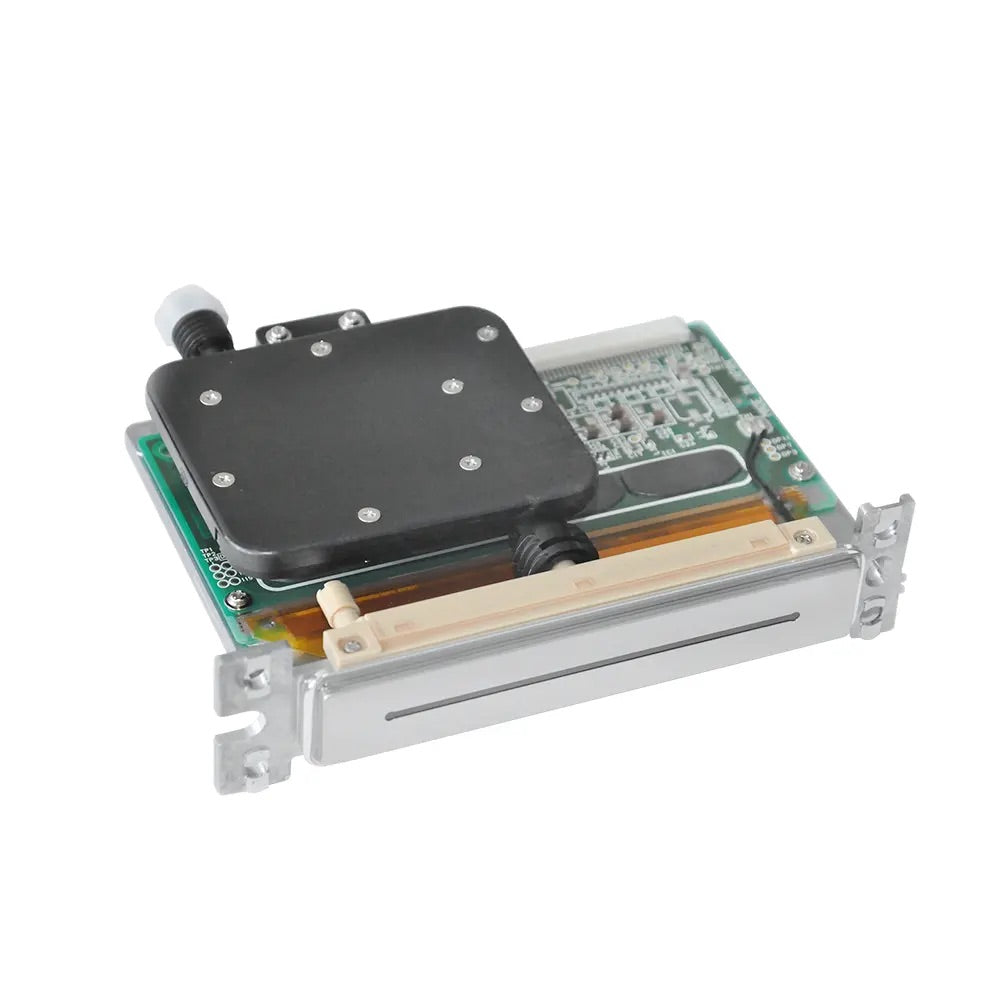

Seiko SPT 510-35PL is an industrial drop-on-demand piezo printhead widely used in compatible grand-format solvent, UV and oil-based printers.
Model Identification
This page is for the 35pl SPT510 variant. SPT510 35pl and 50pl versions are not interchangeable because waveform and drop volume differ.
Technical Specifications
| Model | SPT 510-35PL |
| Technology | Drop-on-demand piezo electric |
| Active nozzles | 510 |
| Native resolution | 180 dpi / 180 npi |
| Print width | Approx. 71.8-72 mm |
| Drop volume | 35 pl |
| Firing frequency | Approx. 8.28-8.29 kHz in common specifications |
| Compatible ink | Solvent, UV and oil-based inks where printer specifies SPT510-35PL |
| Dimensions | 126.3 x 99.2 x 32.9 mm in common supplier specifications |
| Dry weight | Approx. 200 g in common supplier specifications |
| Driving interface | Parallel Interface |
| Source note | Supplier and service specifications; confirm exact Seiko label and printer model before ordering |
Ink System Compatibility
Supplier and service documentation commonly lists SPT510-35PL for solvent, UV and oil-based inks. Confirm the printer's waveform and ink system before purchase.
Applications
Used in compatible grand-format signage, billboard, backlit graphics, poster, textile, packaging and industrial inkjet systems.
Compatibility Confirmation Before Ordering
Confirm the old head label, part number and drop volume before ordering. Do not replace a 50pl SPT510 with a 35pl SPT510 without printer supplier confirmation.
Installation & Handling Notice
Seiko SPT printheads are precision piezo inkjet components. Use trained technicians, antistatic handling, correct waveform, clean ink path, stable negative pressure and proper flushing procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can SPT508GS, SPT510 and SPT1020 replace each other? No. Confirm the exact SPT model, drop volume, cable, waveform and printer board before replacement.
What should I send before ordering? Send the old printhead label, printer model, ink type, cable photos and nozzle-test status.
