Toshiba TEC CE4M Printhead - 636 Nozzles for UV & Oil-Based Ink
Vendor:
Toshiba TEC
- $900.00
- $900.00
- Unit price
- per
Subtotal:
$900.00
Not sure if this product is right for you? Contact iColorPro.
Contact iColorPro
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Product Details
xProduct Overview

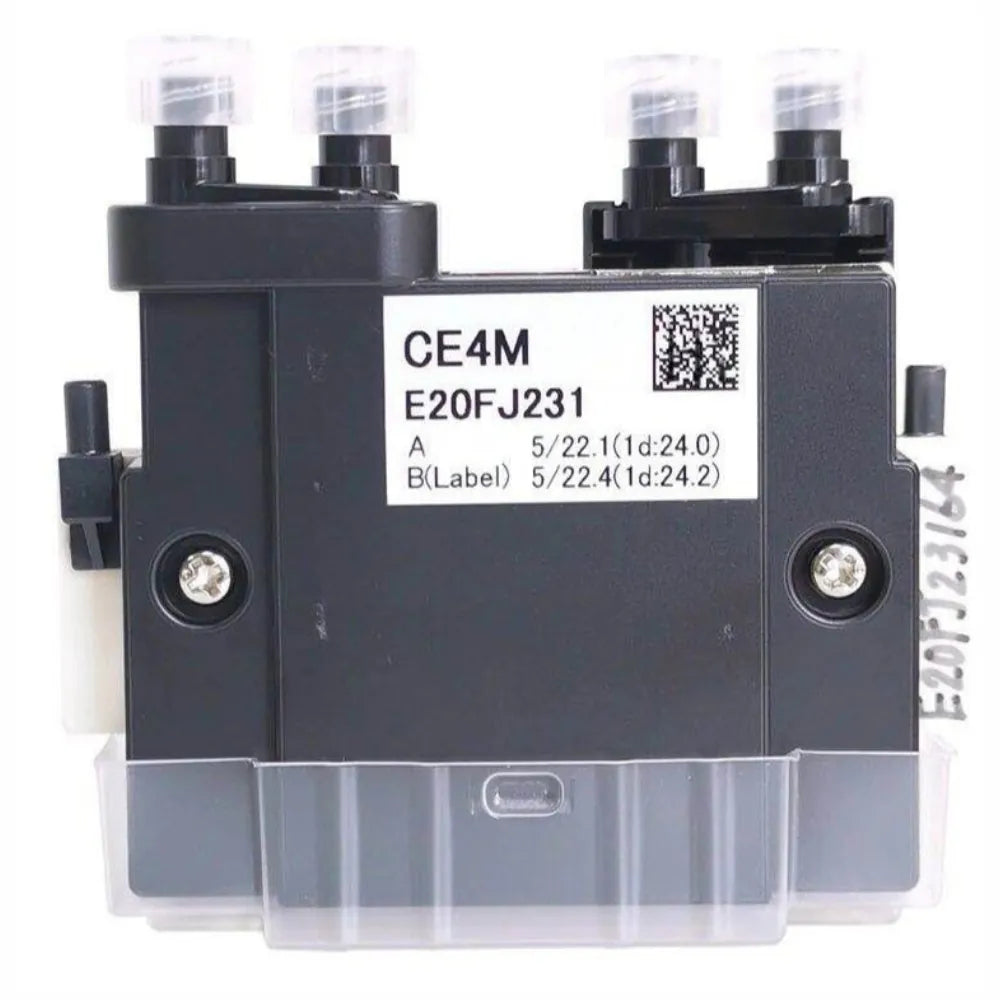

Toshiba TEC CE4M is an industrial on-demand piezo printhead used in compatible UV and oil-based inkjet printer systems.
Model Identification
This page is for CE4M. Do not assume CE4M can replace CE4, CE4W1, CF3 or CF3R without confirming the old head label and printer electronics.
Technical Specifications
| Model | Toshiba TEC CE4M |
| Technology | Multi-drop grayscale micro-piezo / on-demand piezo |
| Active nozzles | 636 |
| Print swath width | 53.7 mm |
| Nozzle pitch | 84.5 um |
| Native resolution | 150 dpi |
| Maximum resolution | 300 dpi |
| Grey scale | 16 levels |
| Drop volume | 5-35 pl |
| Typical firing frequency | 2.8-28 kHz |
| Dimensions | 85 x 70 x 23 mm |
| Weight | 148 g |
| Compatible ink | UV-curable pigment ink and oil-based pigment ink, confirm by printer model |
| Source note | Supplier-published CE4M specifications; confirm exact label before ordering |
Ink System Compatibility
CE4M is commonly supplied for UV-curable pigment ink and oil-based pigment ink workflows. Because public Toshiba CE4M documentation is limited, confirm the exact printer configuration before ordering.
Applications
Used in compatible UV flatbed, UV roll-to-roll, label, packaging, decorative and industrial printing systems where CE4M is specified.
Compatibility Confirmation Before Ordering
Send the old head label, printer model, current ink type, cable photos and head board information before purchase. CE4 / CE4M compatibility should be confirmed by machine model, not by nickname only.
Installation & Handling Notice
Industrial inkjet printheads are precision components. Use trained technicians, antistatic handling, correct cables, matched waveform, clean ink path, stable ink temperature and proper maintenance procedure. Do not touch the nozzle plate or electrical contacts.
FAQ
Can CE4, CE4M, CF3 and CF3R be interchanged? No. Confirm the exact printhead label, cooling method, drive board, cable and printer firmware before replacement.
What should I send before ordering? Send the old printhead label, printer model, current ink type, cable photos, cooling setup and nozzle-test status.
